Toshiba TECRA A9 Series Maintenance Manual

4 Replacement Procedures 4.20 Battery lock/Battery latch
4.20 Battery lock/Battery latch
Removing the Battery lock/Battery latch
To remove the battery lock/battery latch, follow the steps below and refer to Figure 4-34.
1. Remove the battery lock cap while pushing latches inside to release them.
2. Remove the battery lock from the slot. Be careful not to lose the spring.
3. Remove the battery latch cap while pushing latches inside to release them.
4. Remove the battery latch from the slot. Be careful not to lose the spring.
Battery lock
Battery latch
Spring
Spring
Battery lock cap
Battery latch cap
Latch
Latch

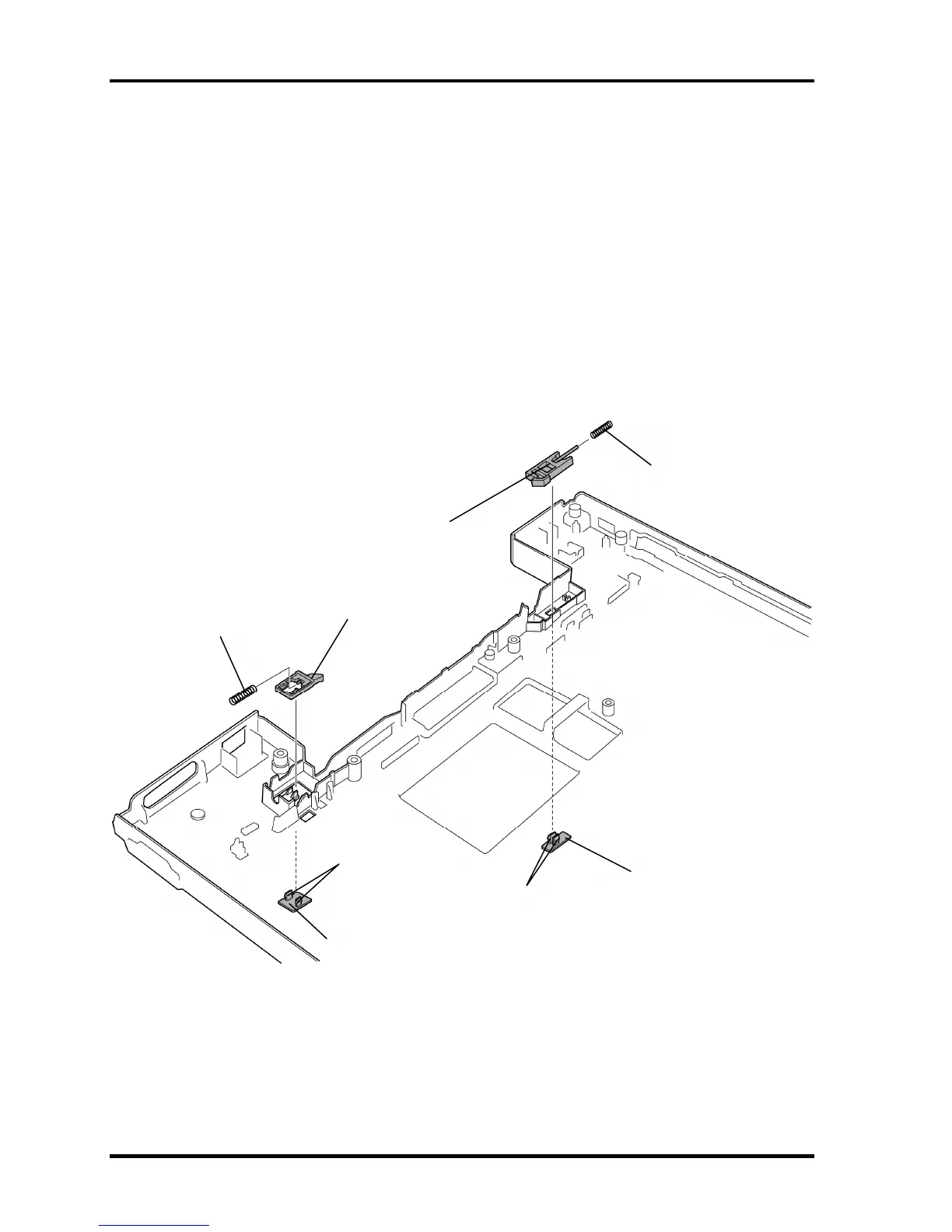

Figure 4-34 Removing the battery lock/battery latch
4-58 [CONFIDENTIAL] TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633)
