Toshiba TECRA A9 Series Maintenance Manual

4 Replacement Procedures 4.19 System board
2. Disconnect the DC-IN jack from the connector CN8800 on the system board.
3. Peel off the glass tape and take out the HDD cable from the slot. (Be careful,
because the HDD cable is still connected to the connector on the back of the system
board.)
4. Remove the system board while releasing two latches.
DC-IN jack
4-52 [CONFIDENTIAL] TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633)

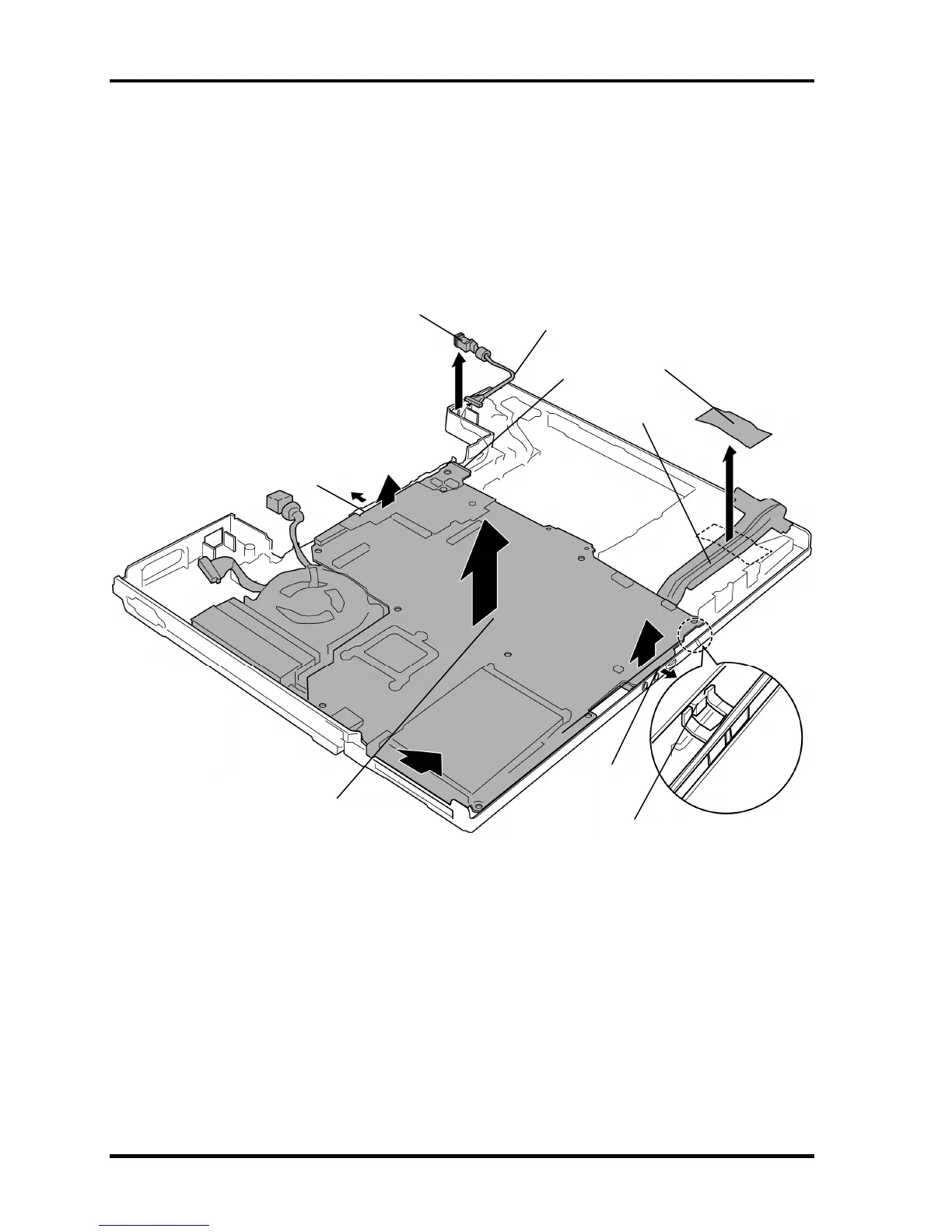

Figure 4-32 Removing the system board
System board
Glass tape
HDD cable
Latch
Latch
CN8800
Wireless communication switch
DC-IN jack cable

Toshiba TECRA A9 Series Specifications

General

Processor	Intel Core 2 Duo
Display	15.4-inch
Display Resolution	1280 x 800 pixels
RAM	Up to 4 GB
Operating System	Windows Vista
Optical Drive	DVD-RW
Wireless	802.11a/g/n
Ports	USB 2.0, VGA, Ethernet, Headphone
