Toshiba TECRA A9 Series Maintenance Manual

4 Replacement Procedures 4.18 RGB board
Installing the RGB board
To install the RGB board, follow the steps below and refer to Figure 4-29 and 4-30.

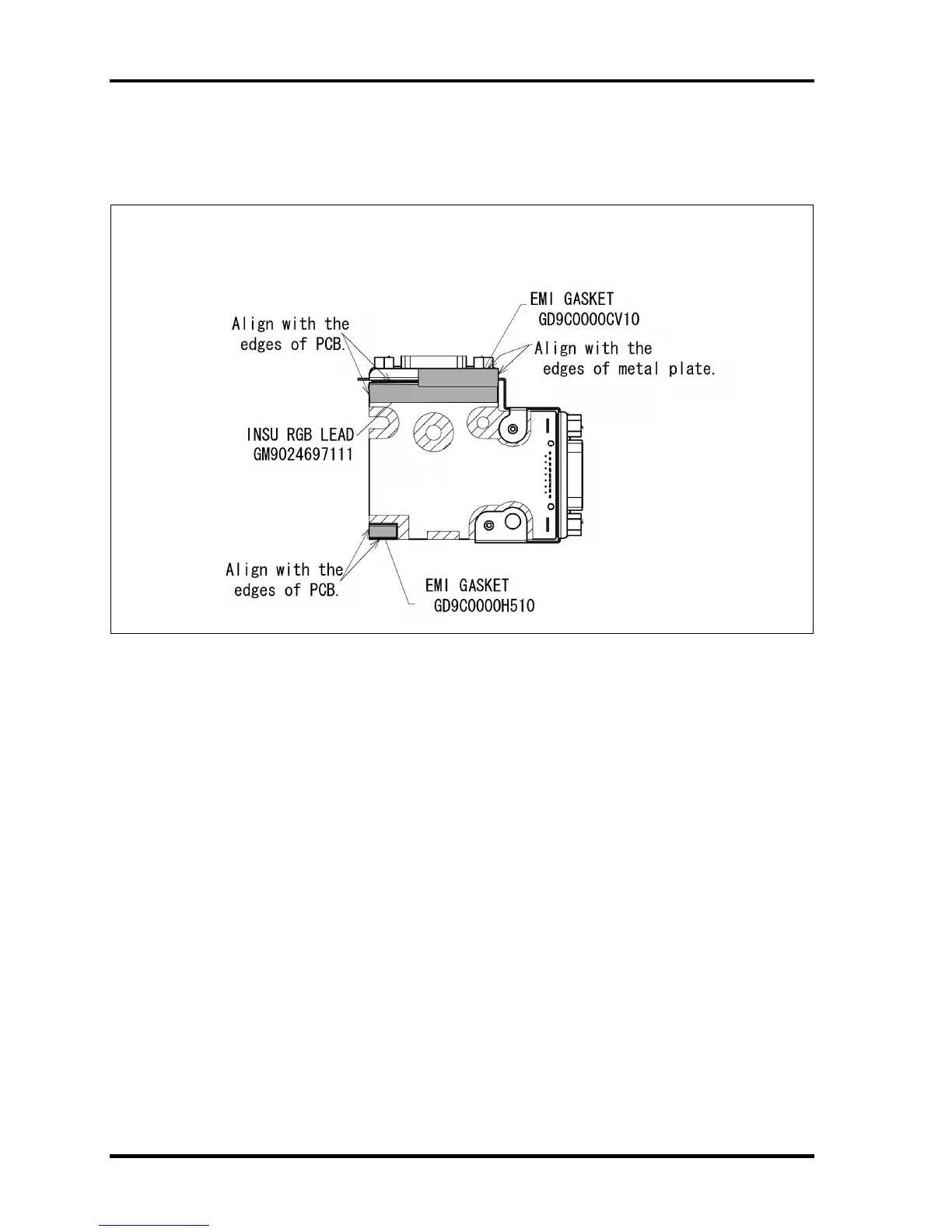

NOTE: When installing a new RGB board, make sure that the insulator and gaskets are
placed as shown in the following figure.
1. Connect the RGB board cable to the connector on the RGB board.
2. Install the RGB board to the slot of the base assembly while insert the RGB
connecter into the hole of the base assembly.
3. Install the cushion into the slot.
4. Open the insulator on the cushion and arrange the LAN jack cable on the insulator.
5. Install the LAN jack into the slot.
6. Stick the insulator over the LAN jack cable, referring to the figure 4-29.
4-50 [CONFIDENTIAL] TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633)
