4.22 North bridge (and GPU) heat sink/CPU heat sink/Fan/CPU 4 Replacement Procedures
3. Remove the following screws in the reverse order of the numbers marked on the
North bridge holder and remove the North bridge hold plate. (In the case of the
Built-in GPU model.)
• M2×4B BIND screw ×3
4. Remove the North bridge heat sink.
M2×4B BIND
M2×4B BIND
North bridge Heat sink
North bridge hold plate

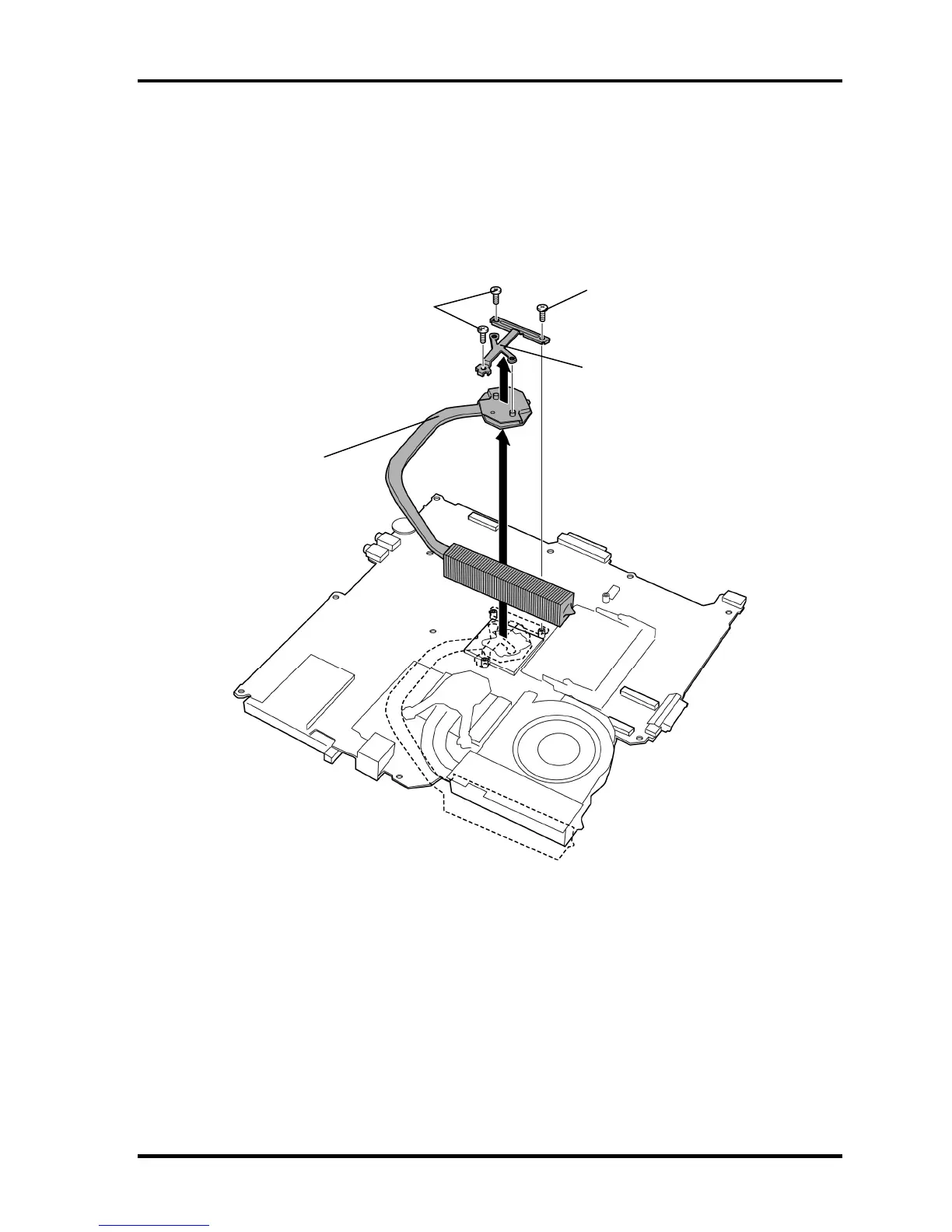

Figure 4-37 Removing the North bridge hold plate
TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633) [CONFIDENTIAL] 4-63
