Toshiba TECRA A9 Series Maintenance Manual

2 Troubleshooting Procedures 2.16 Fingerprint sensor Troubleshooting
Procedure 4 Connector Check and Replacement Check

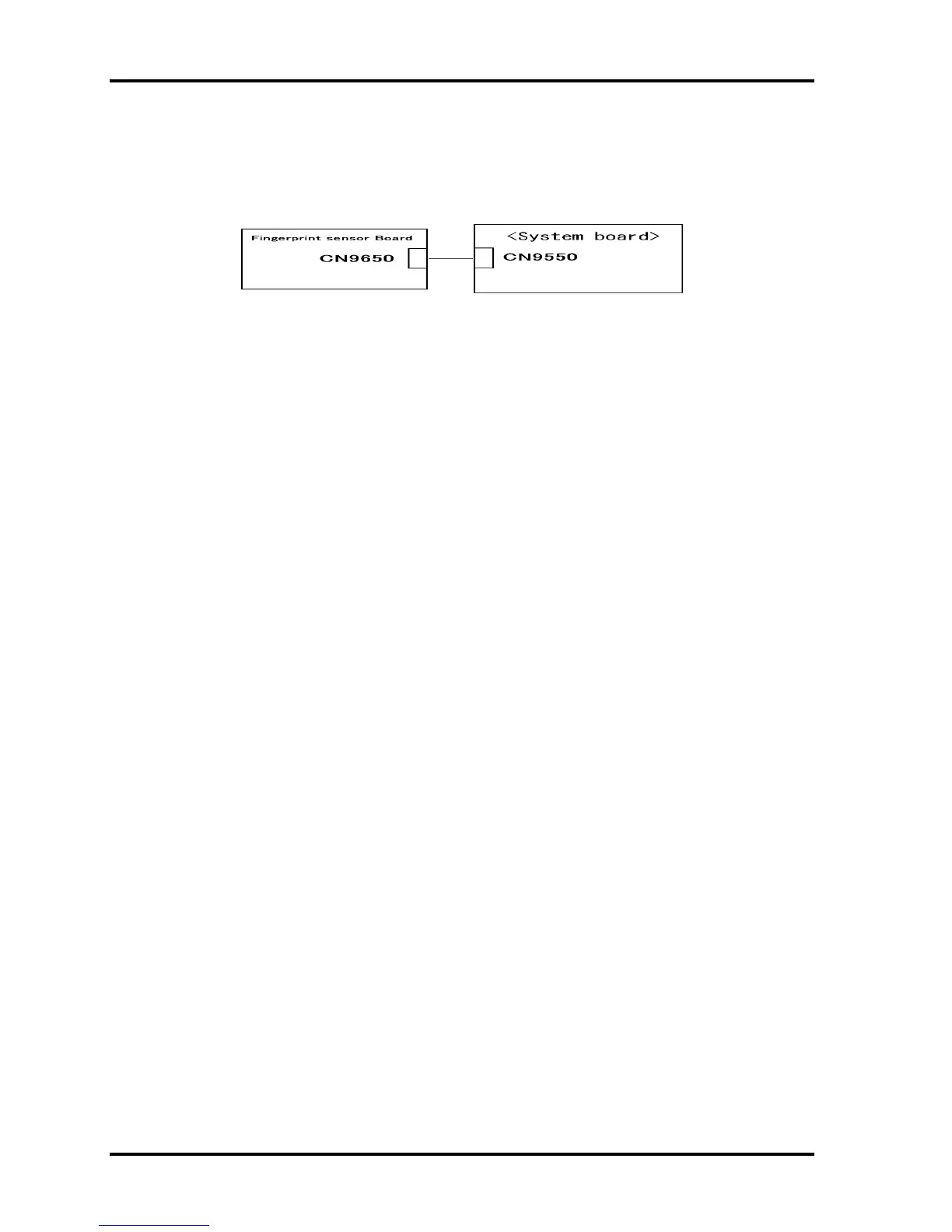

The Fingerprint sensor cable is connected to the connector CN9650 on the Fingerprint sensor
board and connector CN9550 on the system board.
Check 1 Check the Fingerprint sensor cable is firmly connected to the connector CN9650
on the Fingerprint sensor board and connector CN9550 on the system board. If
not, connect it firmly. If the Fingerprint sensor is still not functioning properly,
perform Check 2.
Check 2 The Fingerprint sensor cable may be faulty. Replace it with a new one. If the
problem persists, perform Check 3.
Check 3 The Fingerprint sensor board may be faulty. Replace it with a new one. If the
problem persists, perform Check 4.
Check 4 The system board may be faulty. Replace it with a new one.
2-68 [CONFIDENTIAL] TECRA A9(S5/P5/S200) Maintenance Manual (960-633)

Toshiba TECRA A9 Series Specifications

General

Processor	Intel Core 2 Duo
Display	15.4-inch
Display Resolution	1280 x 800 pixels
RAM	Up to 4 GB
Operating System	Windows Vista
Optical Drive	DVD-RW
Wireless	802.11a/g/n
Ports	USB 2.0, VGA, Ethernet, Headphone
