4.7 Keyboard 4 Replacement Procedures
6. Remove the following screw and keyboard support plate.
• M2.5×6B FLAT HEAD screw ×1
7. Disconnect the keyboard cable from the connector CN3230 on the system board and
remove the keyboard.
M2.5×6B FLAT HEAD
Keyboard support plate
Keyboard
Keyboard cable
CN3230

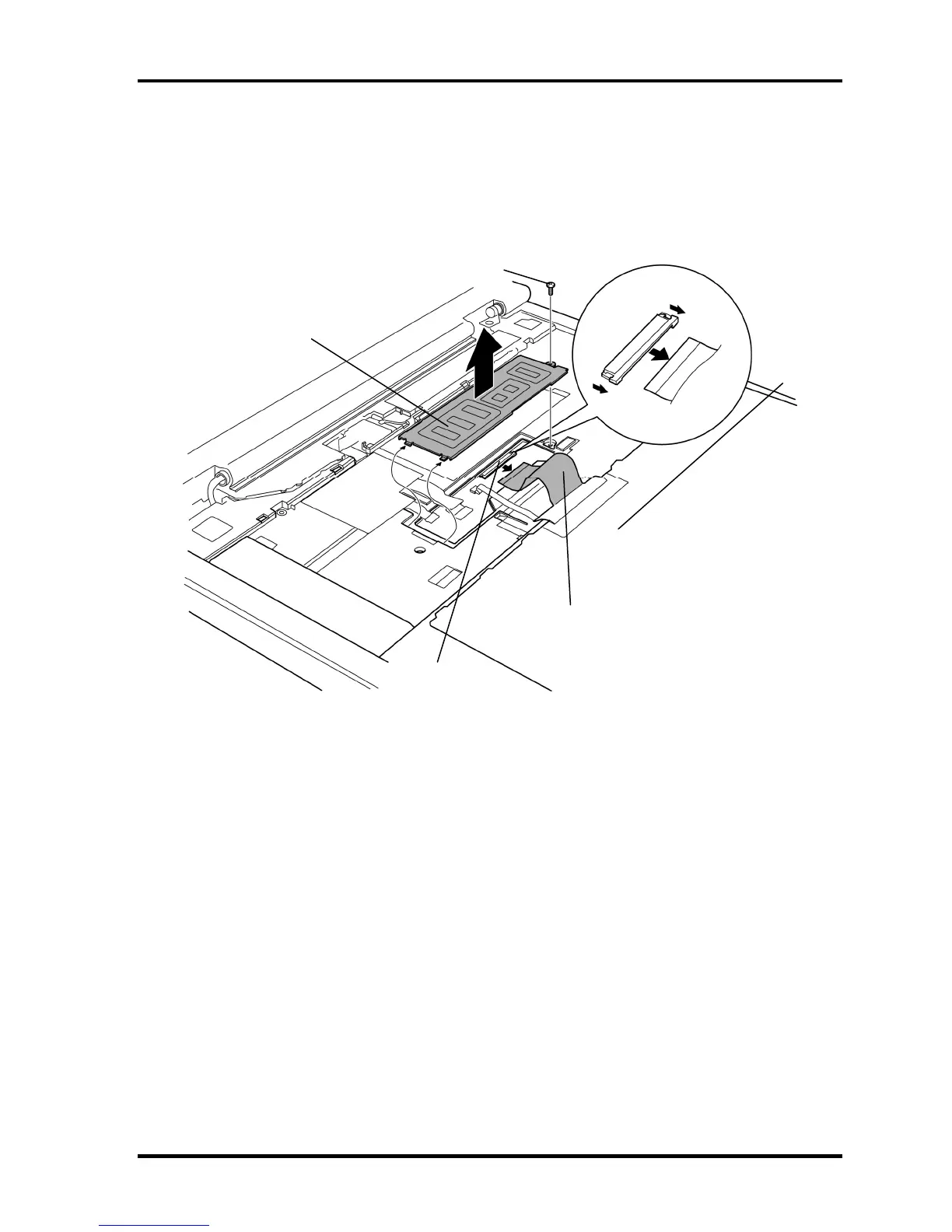

Figure 4-11 Removing the keyboard (2)
TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633) [CONFIDENTIAL] 4-21
