4 Replacement Procedures 4.12 Optical drive
5. Remove the following screws and pushing plate.
• M2×2.7C S-THIN HEAD screw ×2
6. Remove the following screw and mounting plate.
• M2×3C S-THIN HEAD screw ×1
M2×3C S-THIN HEAD
Mounting plate
M2×2.7C S-THIN HEAD
Pushing plate

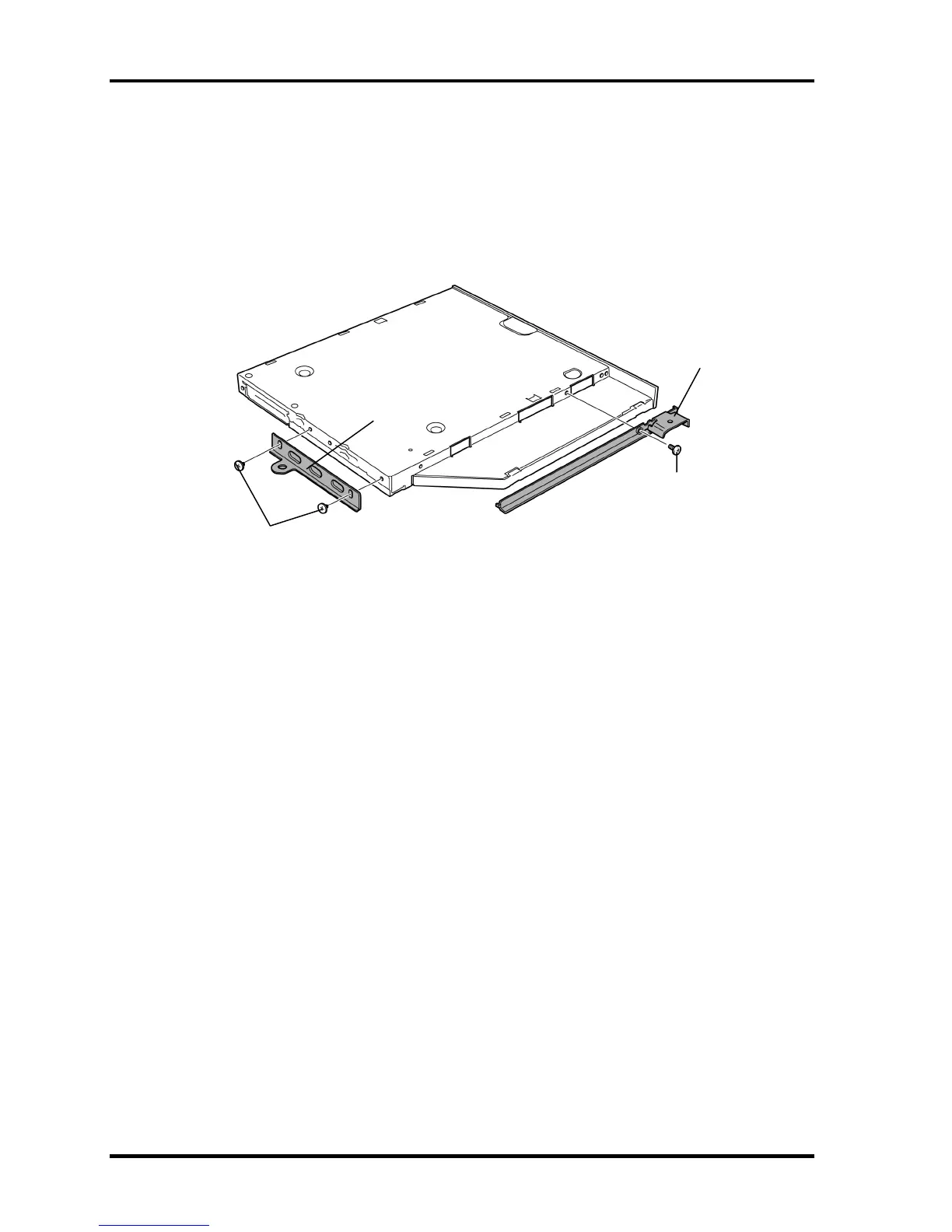

Figure 4-20 Disassembling the optical drive
4-34 [CONFIDENTIAL] TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633)
