Toshiba TECRA A9 Series Maintenance Manual

4.13 Cover assembly and Base assembly 4 Replacement Procedures
4. Turn over the computer and open the display.
5. Disconnect the LCD cable, speaker cable, fingerprint sensor cable and touch pad
cable from the connector CN5000, CN6170, CN 9550 and CN3240 on the system
board.
6. Remove the following screws.
• M2.5×6B FLAT HEAD screw ×3
7. Separate the cover assembly and base assembly while releasing the latches.
Fingerprint sensor cable
(Connected to CN9550)
Touch pad cable
(Connected to CN3240)
LCD cable
(Connected to CN5000)
Speaker cable
(Connected to CN6170)
M2.5
×
6B FLAT HEAD
M2.5×6B FLAT HEAD
Cover assembly
Base assembly

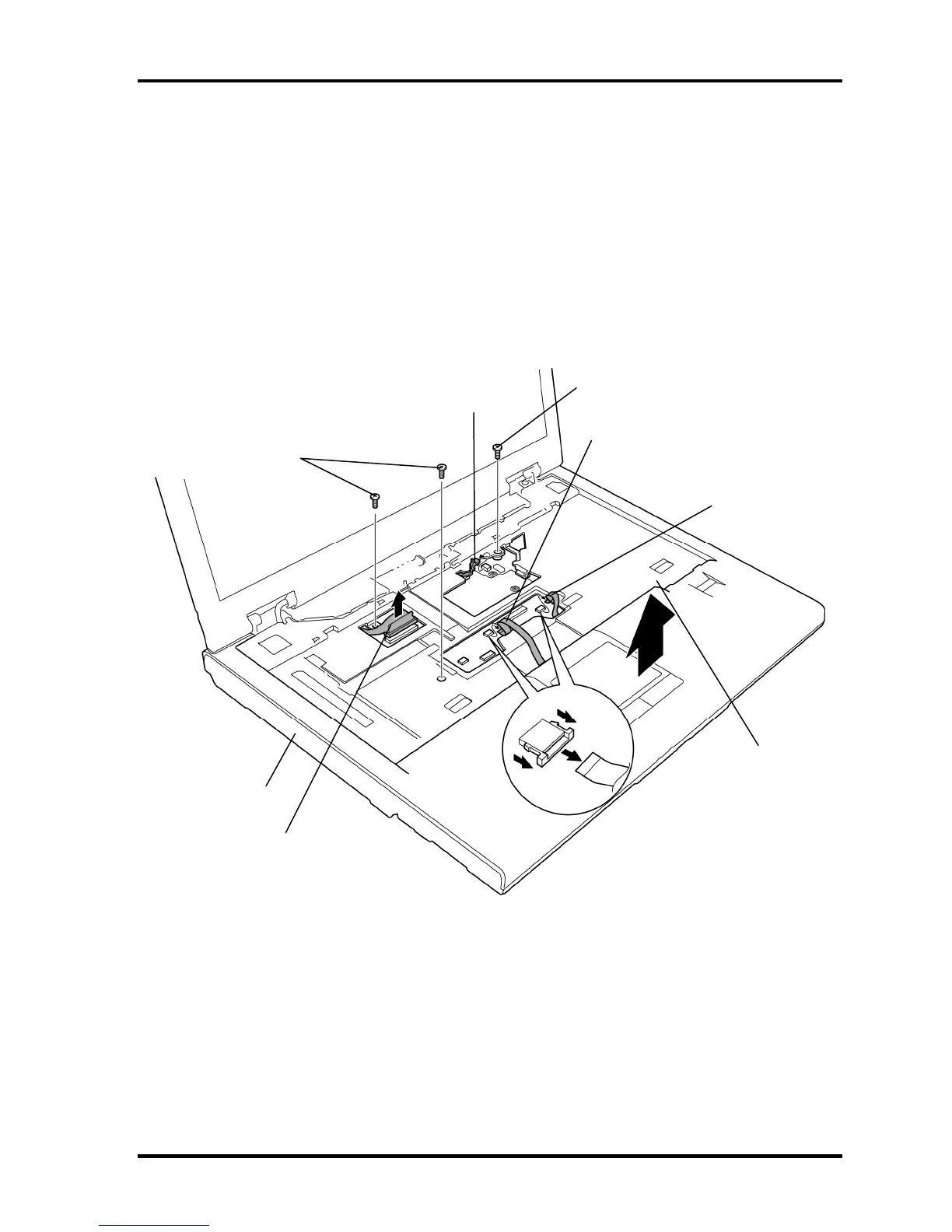

Figure 4-22 Removing the cover assembly and base assembly (2)
TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633) [CONFIDENTIAL] 4-37

Toshiba TECRA A9 Series Specifications

General

Processor	Intel Core 2 Duo
Display	15.4-inch
Display Resolution	1280 x 800 pixels
RAM	Up to 4 GB
Operating System	Windows Vista
Optical Drive	DVD-RW
Wireless	802.11a/g/n
Ports	USB 2.0, VGA, Ethernet, Headphone
