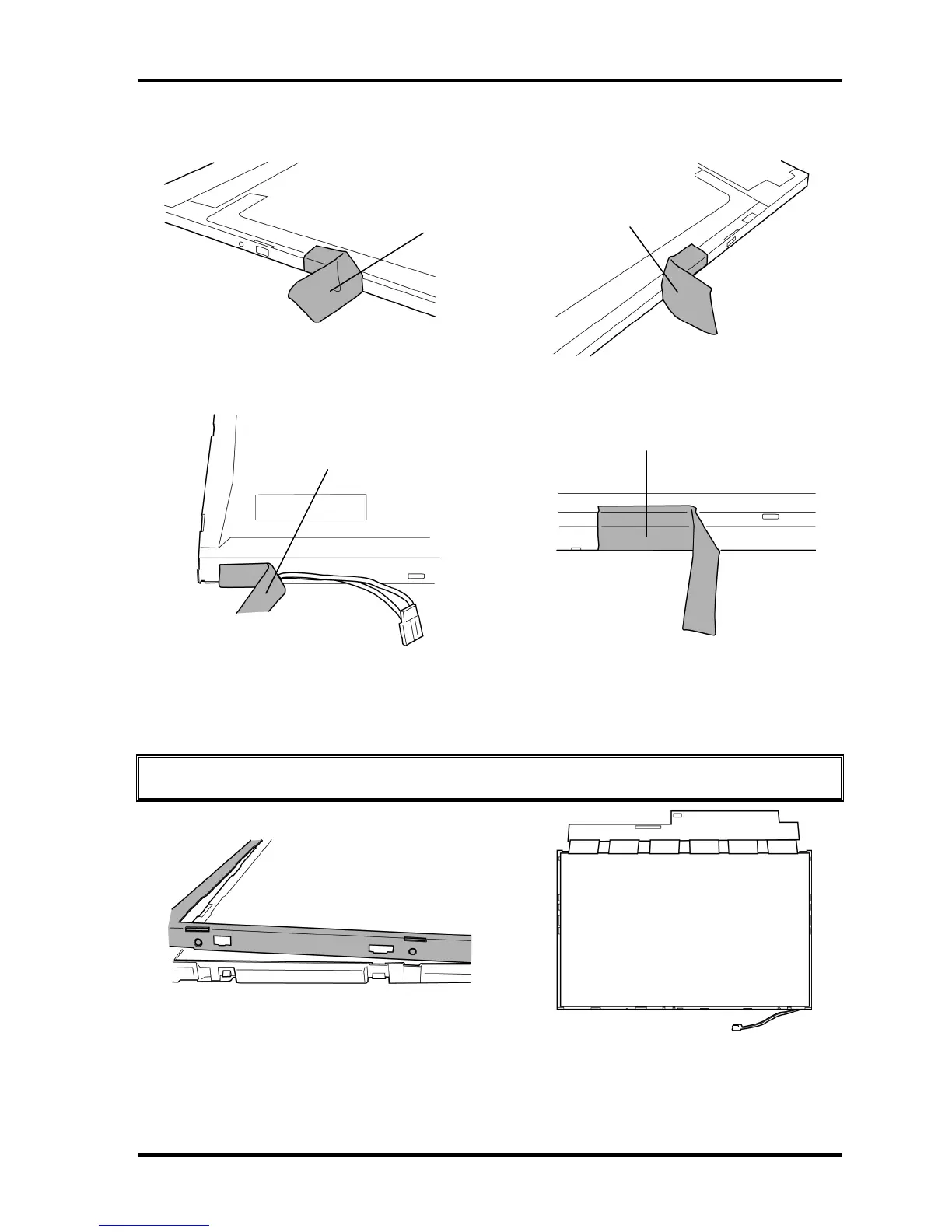

4.30 Fluorescent Lamp 4 Replacement Procedure
2. Remove the yellow tapes, lamp-wire tape and Al tape.
Lamp-wire tape
Bottom Al tape
Yellow tape (left)
Yellow tape (right)
Figure 4-57 Replacing Samsung fluorescent lamp (WXGA) (2)
3. Remove the top chassis from the molded frame.
CAUTION: Remove in the order of bottom hook and side hook.
Figure 4-58 Replacing Samsung fluorescent lamp (WXGA) (3)
TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633) [CONFIDENTIAL] 4-97
