4.30 Fluorescent Lamp 4 Replacement Procedure
2. Remove the white tapes, lamp-wire tape and Al tape.
White tape (right)
White tape (left)
Lamp-wire tape
Bottom Al tape

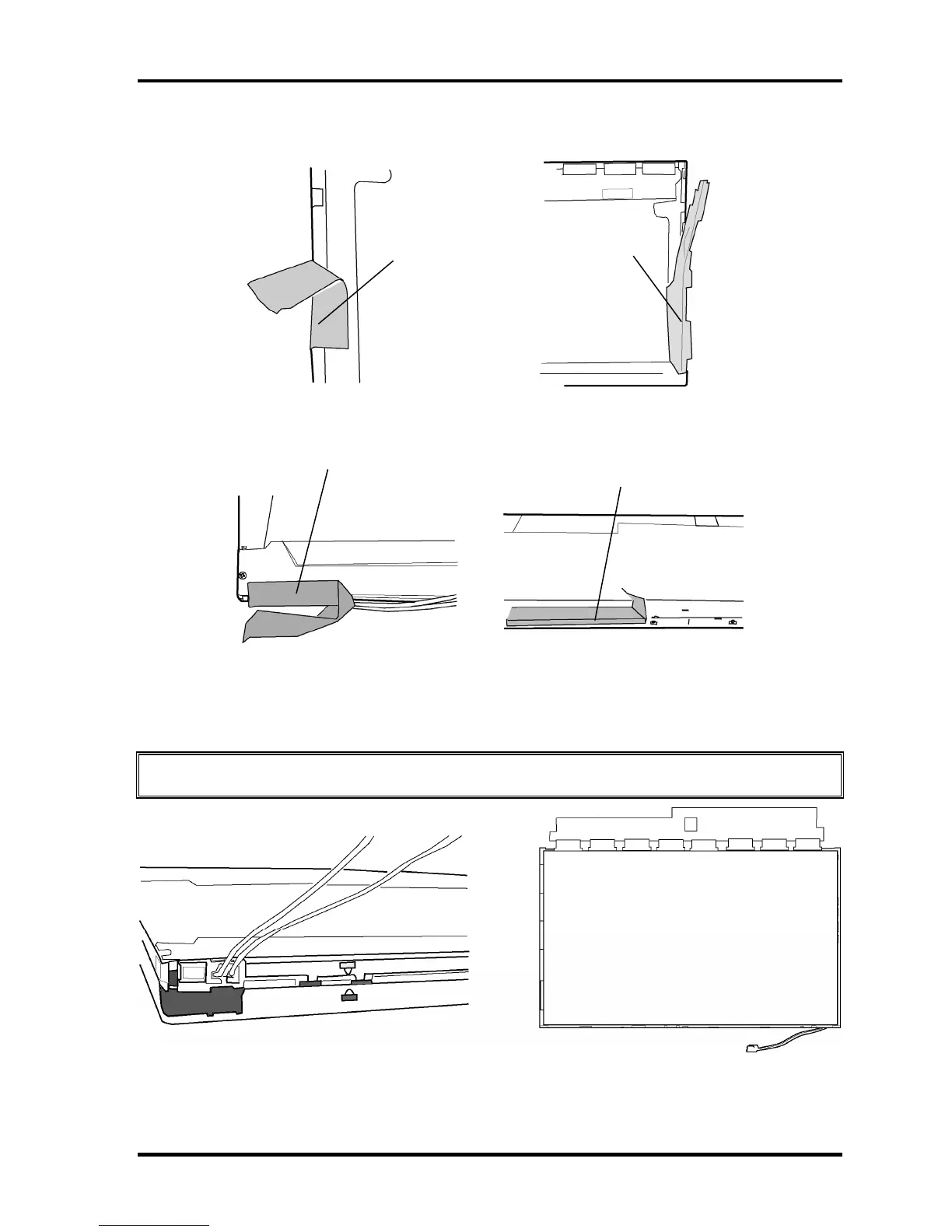

Figure 4-61 Replacing Samsung fluorescent lamp (WSXGA+) (2)
3. Separate the top chassis and molded frame.
CAUTION: Remove in the order of bottom hook and side hooks.
Figure 4-62 Replacing Samsung fluorescent lamp (WSXGA+) (3)
TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633) [CONFIDENTIAL]4-101
