3.31 SETUP 3 Tests and Diagnostics

3.31.2 Accessing the SETUP Program

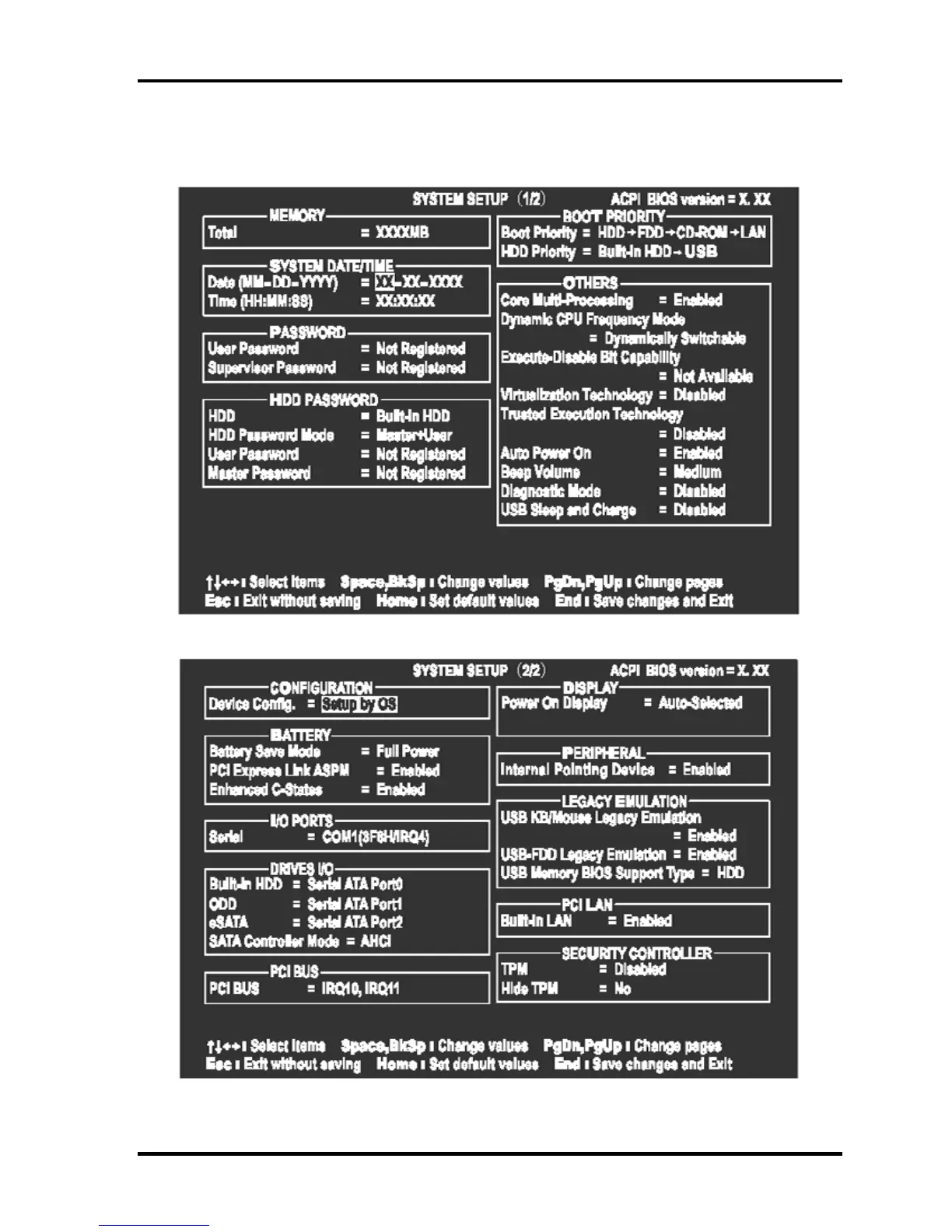

While pressing ESC, turn on the power. Then press F1. The following display appears.

TECRA M10 Maintenance Manual (960-685) [CONFIDENTIAL] 3-81
