4.13 3G card 4 Replacement Procedures
4.13 3G card
Removing the 3G card
To remove the 3G card, follow the steps below and refer to Figure 4-23.
1. Disconnect the 3G antenna cables from the 3G card using an antenna coaxial cable
disconnector.
2. Remove the following screws securing the 3G card.
• M2.0×4B BIND screw ×2
3. Disconnect the 3G card from the connector on the system board.
M2.0x4B BIND
3G card
3G antenna cable (red)
3G antenna cable (blue) Slit

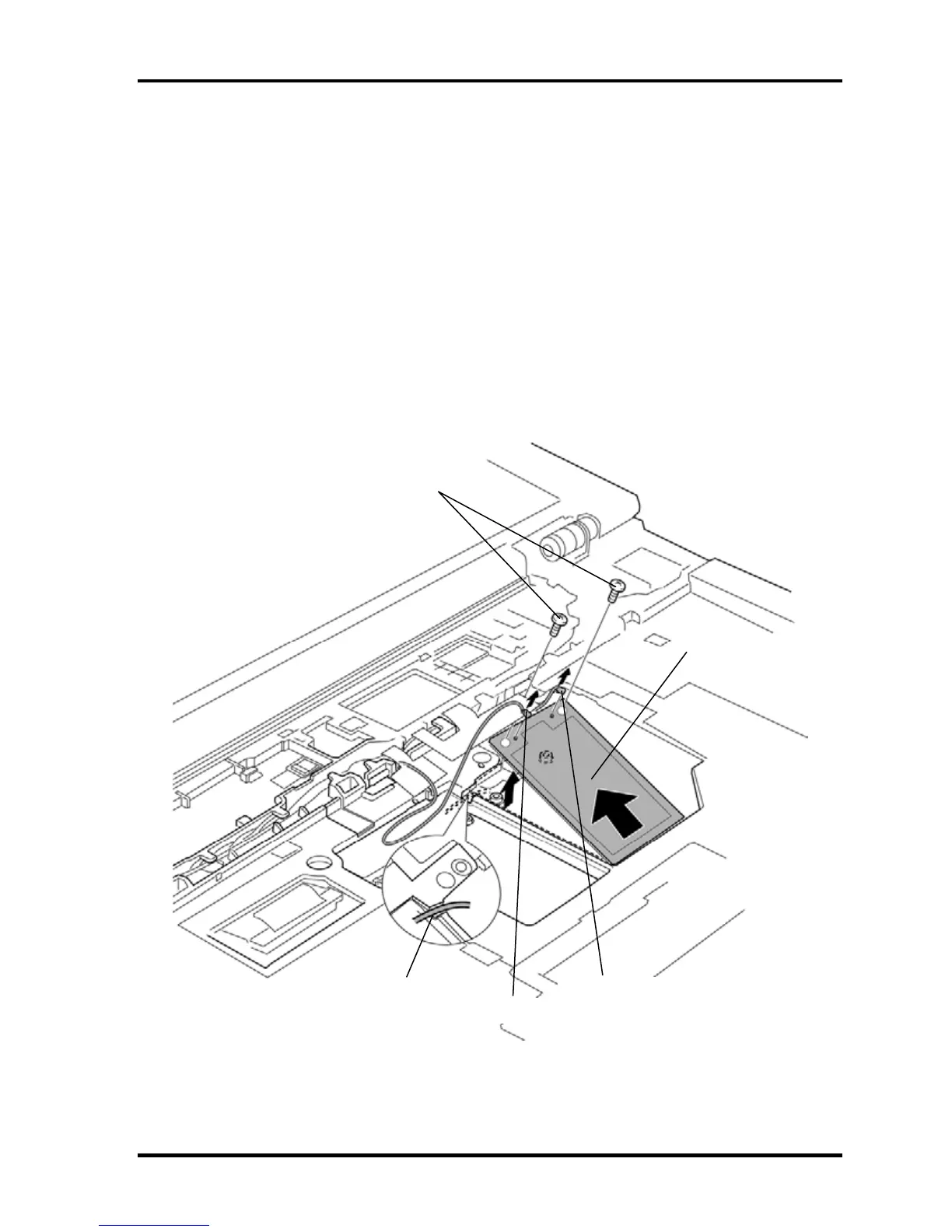

Figure 4-23 Removing the 3G card
TECRA M10 Maintenance Manual (960-685) [CONFIDENTIAL] 4-39
