Toshiba Tecra M10 - Removing the Hinge

4.34 Hinge 4 Replacement Procedures
4.34 Hinge
Removing the Hinge
To remove the hinge, follow the steps below and refer to Figure 4-66 and 4-67.
1. Remove the following screw securing the brake hinge L.
• M2.5×6C Tapping screw ×1
2. Release two hooks and remove the brake hinge L through the hole.
Brake hinge L
M2.5x6C Tapping
Hook

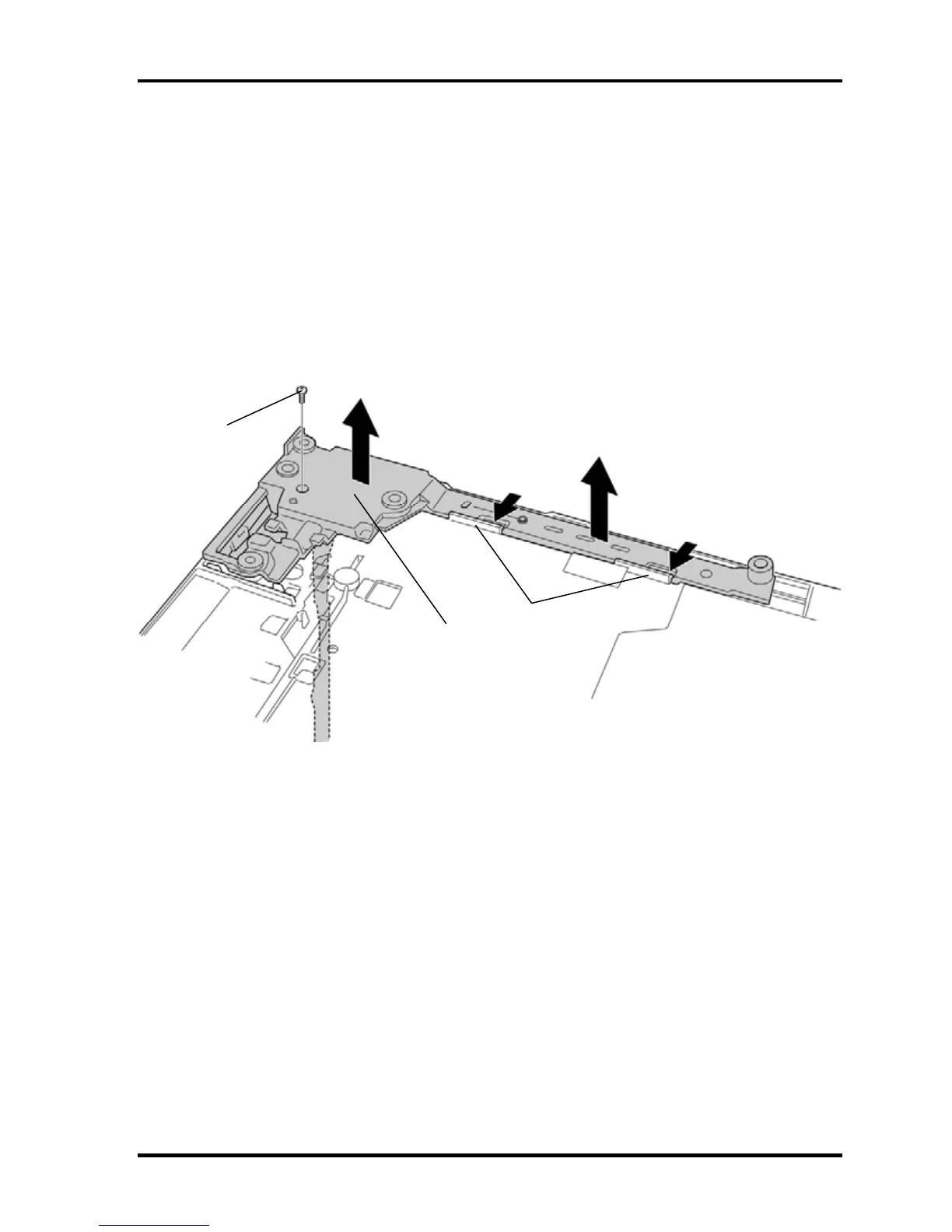

Figure 4-66 Removing the hinge (1)
TECRA M10 Maintenance Manual (960-685) [CONFIDENTIAL] 4-107
