4 Replacement Procedures 4.27 Touch pad/Fingerprint sensor board
4 Replacement Procedures
4.27 Touch pad/Fingerprint sensor board
Removing the Touch pad/Fingerprint sensor board
To remove the touch pad/fingerprint sensor board, follow the steps below and refer to Figure
4-49 to 4-52.
1. Turn up the insulator (TPAD PLT INSULATOR) and remove the following screws.
• M2.5×4B FLAT HEAD screw ×4
2. Peel off the insulator (SQUARE INSULATOR).
M2.5x4B FLAT HEAD
Insulator
(TPAD PLT INSULATOR)
M2.5x4B FLAT HEAD
Insulator
(TPAD PLT INSULATOR)
Insulator
(SQUARE INSULATOR)

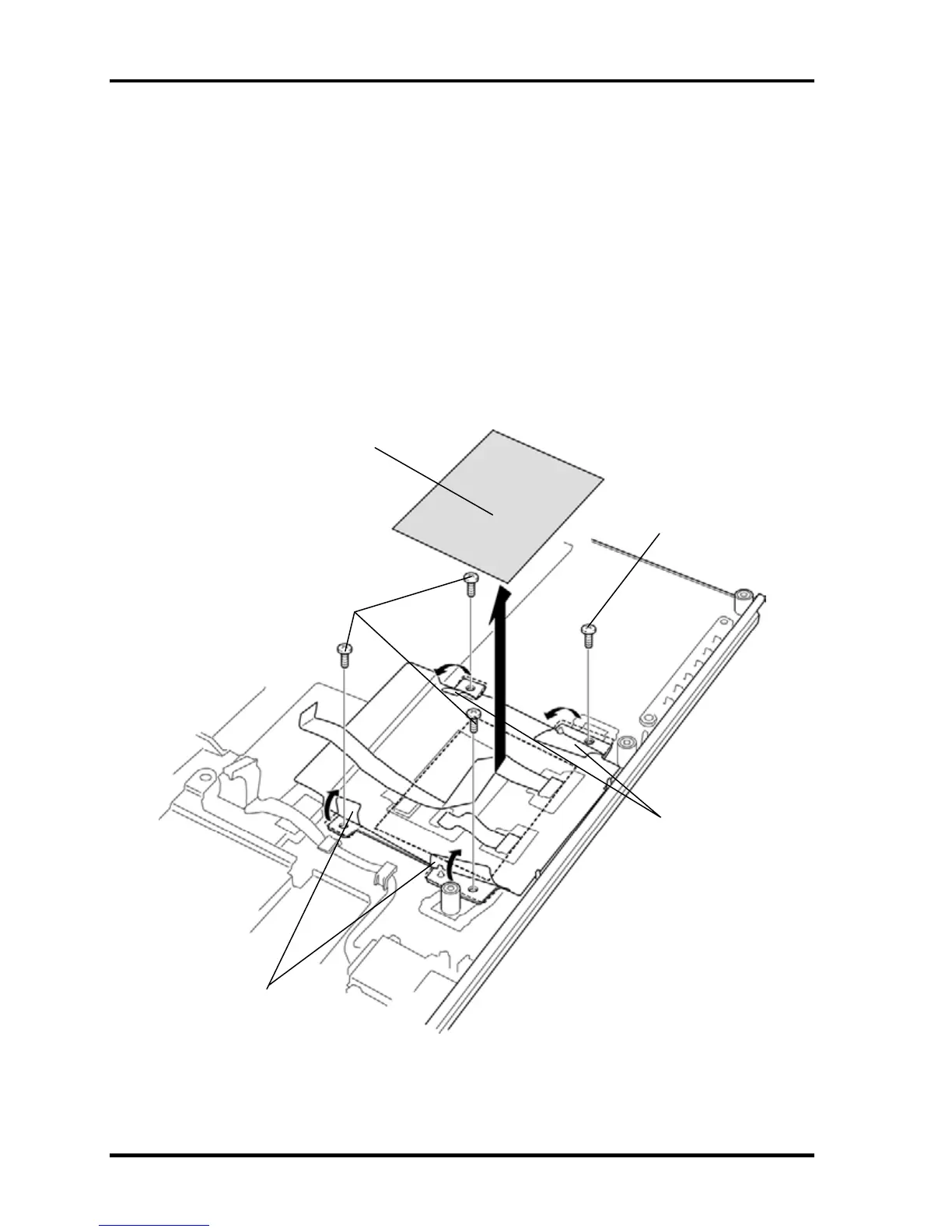

Figure 4-49 Removing the touch pad/fingerprint sensor board (1)
4-78 [CONFIDENTIAL] TECRA M10 Maintenance Manual (960-685)
