Toshiba Tecra M10 - Removing the LCD Mask

4 Replacement Procedures 4.33 LCD mask
4.33 LCD mask
Removing the LCD mask
To remove the LCD mask, follow the steps below and refer to Figure 4-64 to 4-65.
1. Remove the following screws and stand the LCD mask.
CAUTION: When standing the LCD mask, hold the LCD mask with the hinge and stand
them carefully.
• M2.5×4B FLAT HEAD screw ×2
• M2.5×6C Tapping screw ×2
LCD mask
M2.5x4B FLAT HEAD
M2.5x4B FLAT HEAD
M2.5x6C Tapping

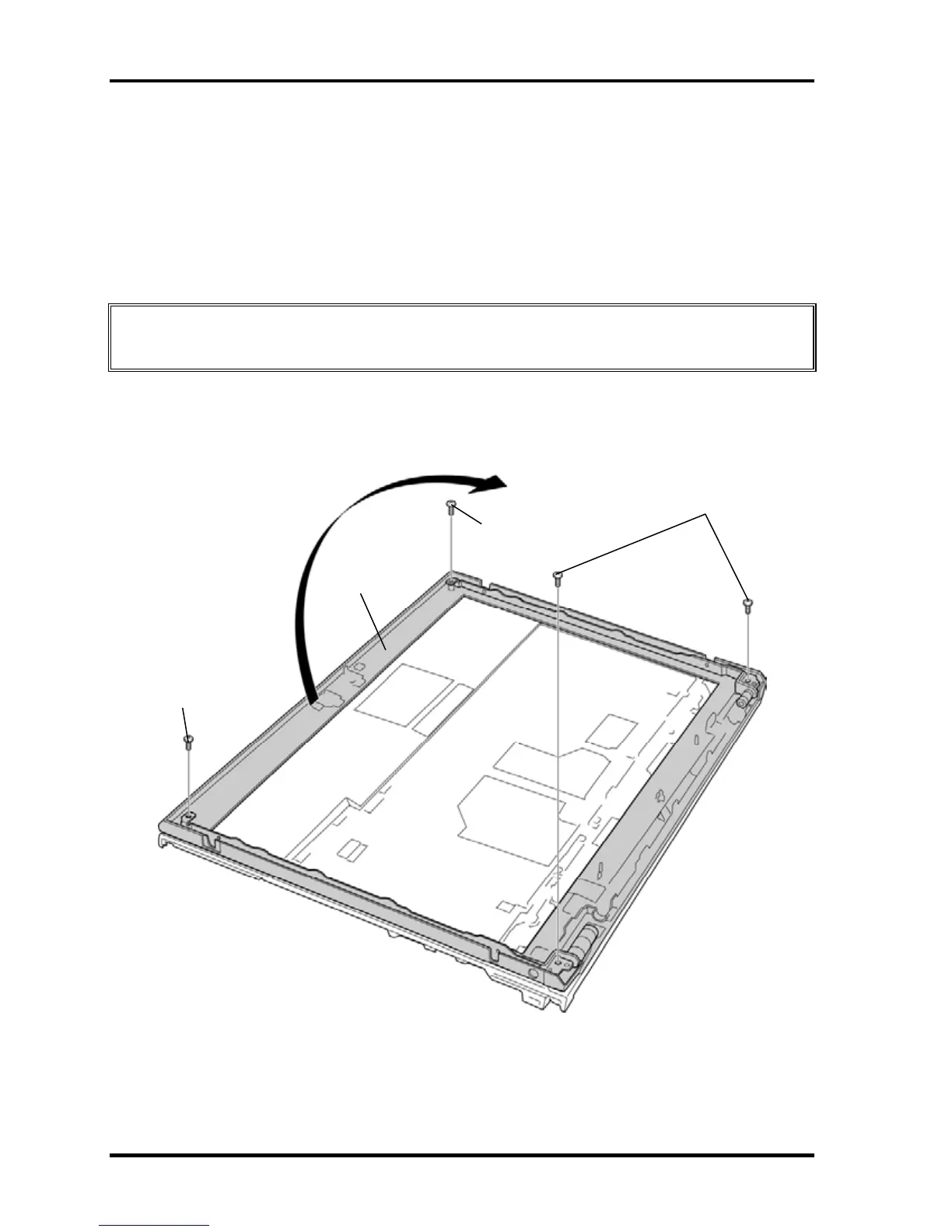

Figure 4-64 Removing the LCD mask (1)
4-104 [CONFIDENTIAL] TECRA M10 Maintenance Manual (960-685)
