4 Replacement Procedures 4.25 Sound board/Microphone harness

4.25 Sound board/Microphone harness

Removing the Sound board/Microphone harness

To remove the sound board/microphone harness, follow the steps below and refer to Figure

4-47.

1. Peel off the glass tape.

2. Remove the following screws and sound board/microphone harness from the slot.

• M2.5×4B FLAT HEAD screw ×2

3. Disconnect the microphone harness from the connector CN6050 on the sound board.

4. Disconnect the sound board FFC from the connector CN9630 on the sound board.

M2.5x4B FLAT HEAD

4-74 [CONFIDENTIAL] TECRA M10 Maintenance Manual (960-685)

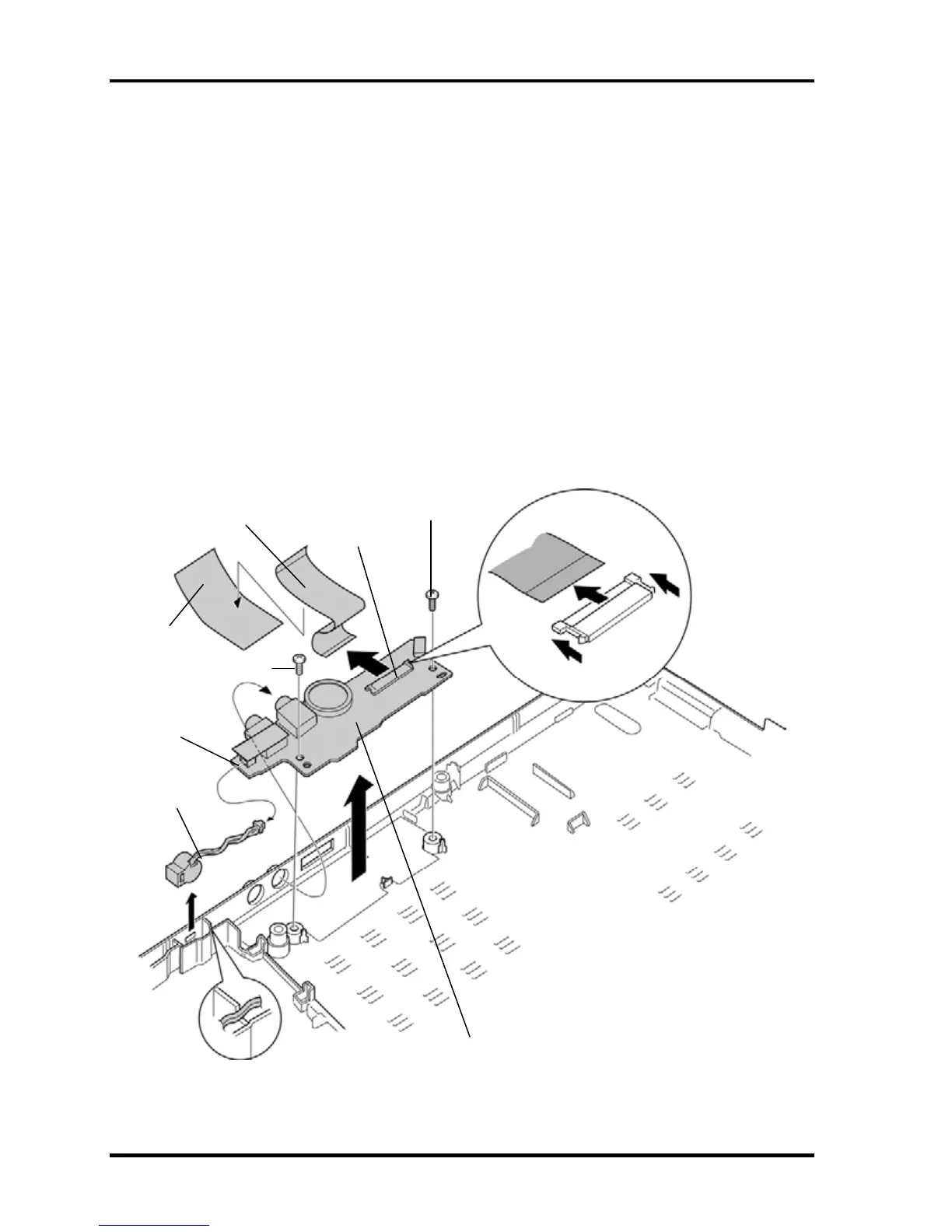

Figure 4-47 Removing the sound board/microphone harness

Sound board

CN9630

Glass tape

Microphone

harness

Sound board FFC

M2.5x4B FLAT HEAD

CN6050
