Toshiba Tecra M10 - Removing the USB Board

To Next Page

To Previous Page

4.17 MDC modem/USB board 4 Replacement Procedures

4. Disconnect the USB harness from the connector CN9560 on the system board and

connector CN9660 on the USB board.

5. Remove the USB board from the slot of the base assembly while pushing the latches

in the direction as shown in the figure below.

USB board

USB harness

CN9560

CN9660

Latch

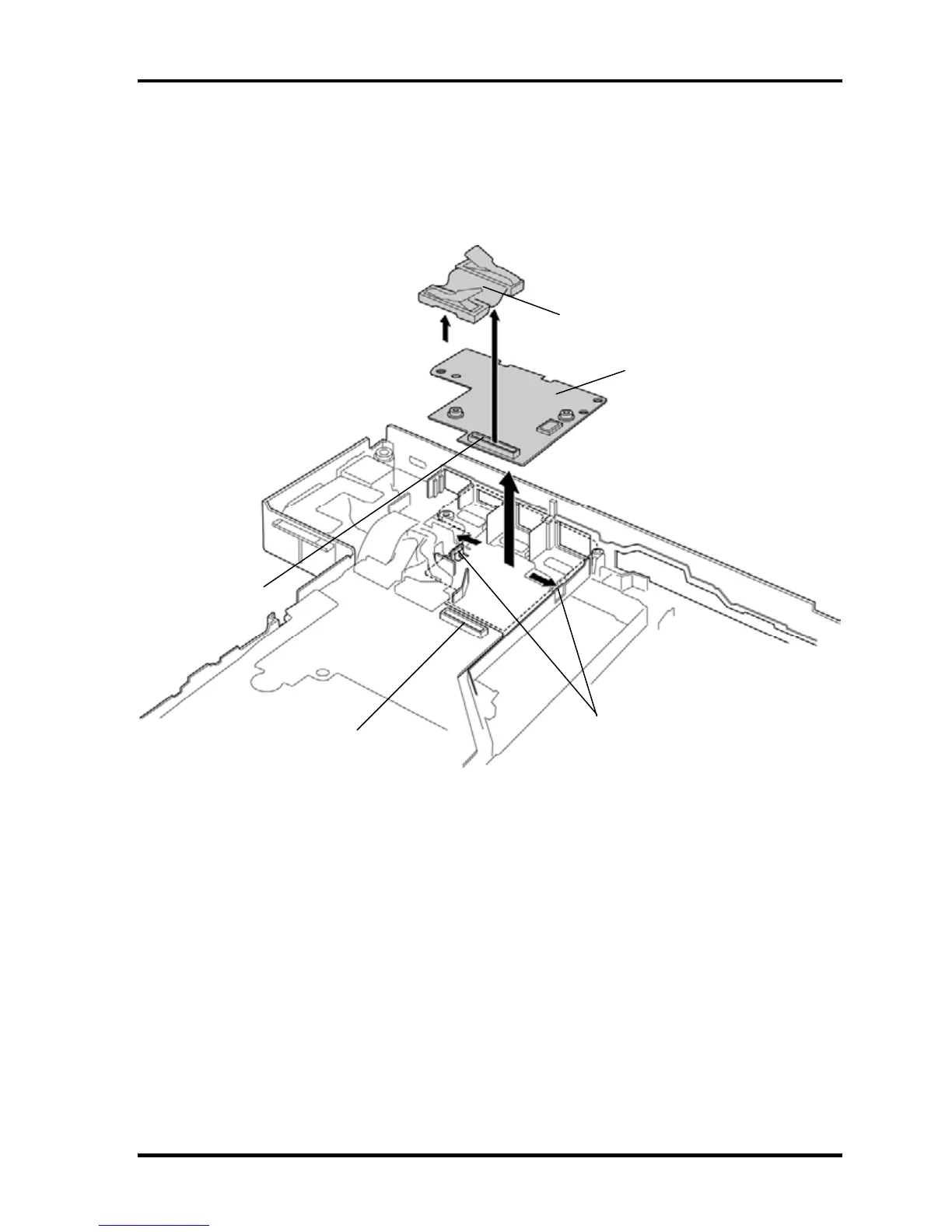

Figure 4-32 Removing the USB board

TECRA M10 Maintenance Manual (960-685) [CONFIDENTIAL] 4-51
