4 Replacement Procedures 4.7 HDD
4.7 HDD
Removing the HDD
To remove the HDD, follow the steps below and refer to Figure 4-10 and 4-11.
CAUTION: Take care not to press on the top or bottom of a HDD. Pressure may cause the
data loss or damage to the device.
1. Remove the following screw securing the HDD cover.
• M2.5×5B FLAT HEAD screw ×1
2. Insert your finger into the slot and lift the HDD cover to remove.
3. Remove the HDD assembly from the slot and disconnect it from the connector on the
HDD harness.
HDD cover
M2.5×5B FLAT HEAD
Slot
HDD assembly
HDD harness

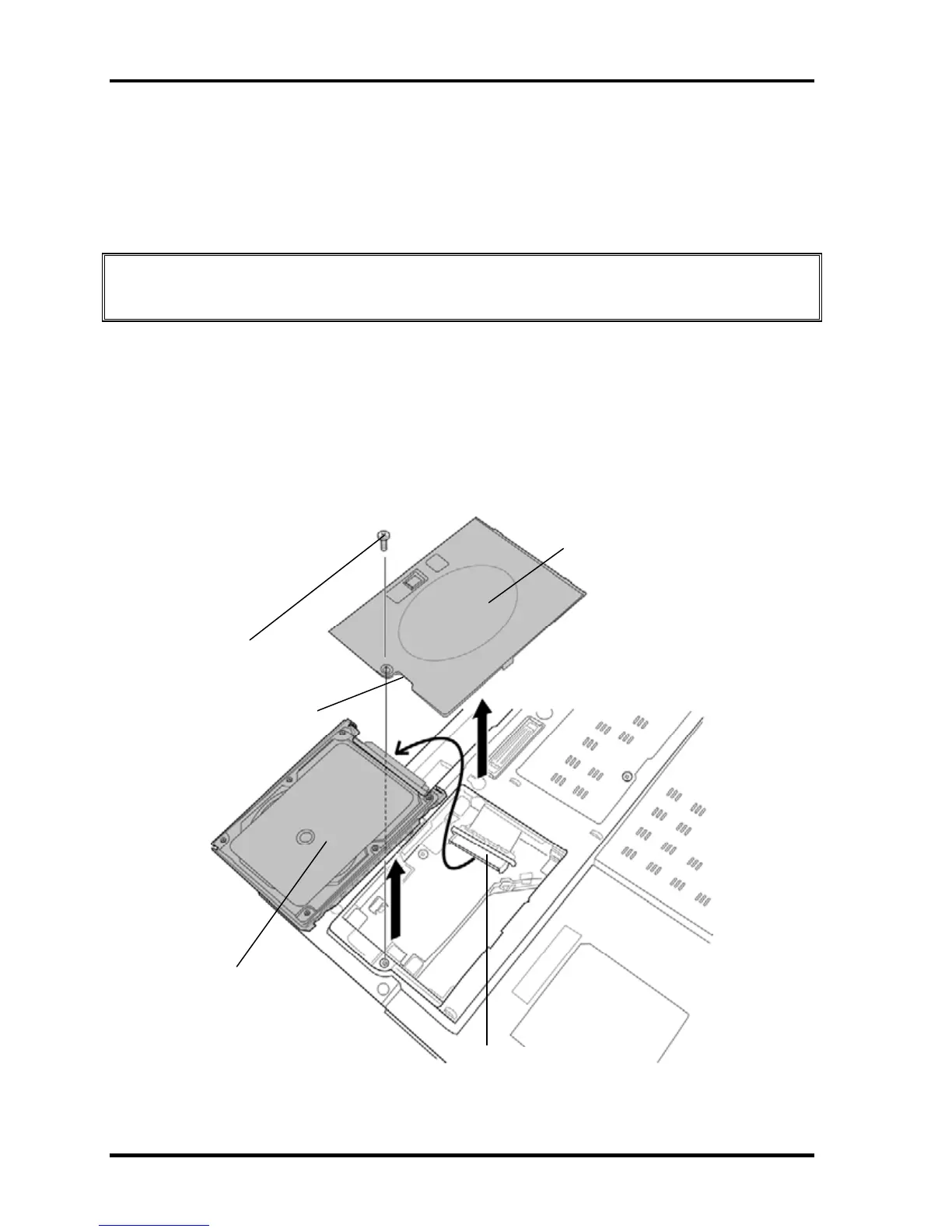

Figure 4-10 Removing the HDD assembly
4-22 [CONFIDENTIAL] TECRA M10 Maintenance Manual (960-685)
