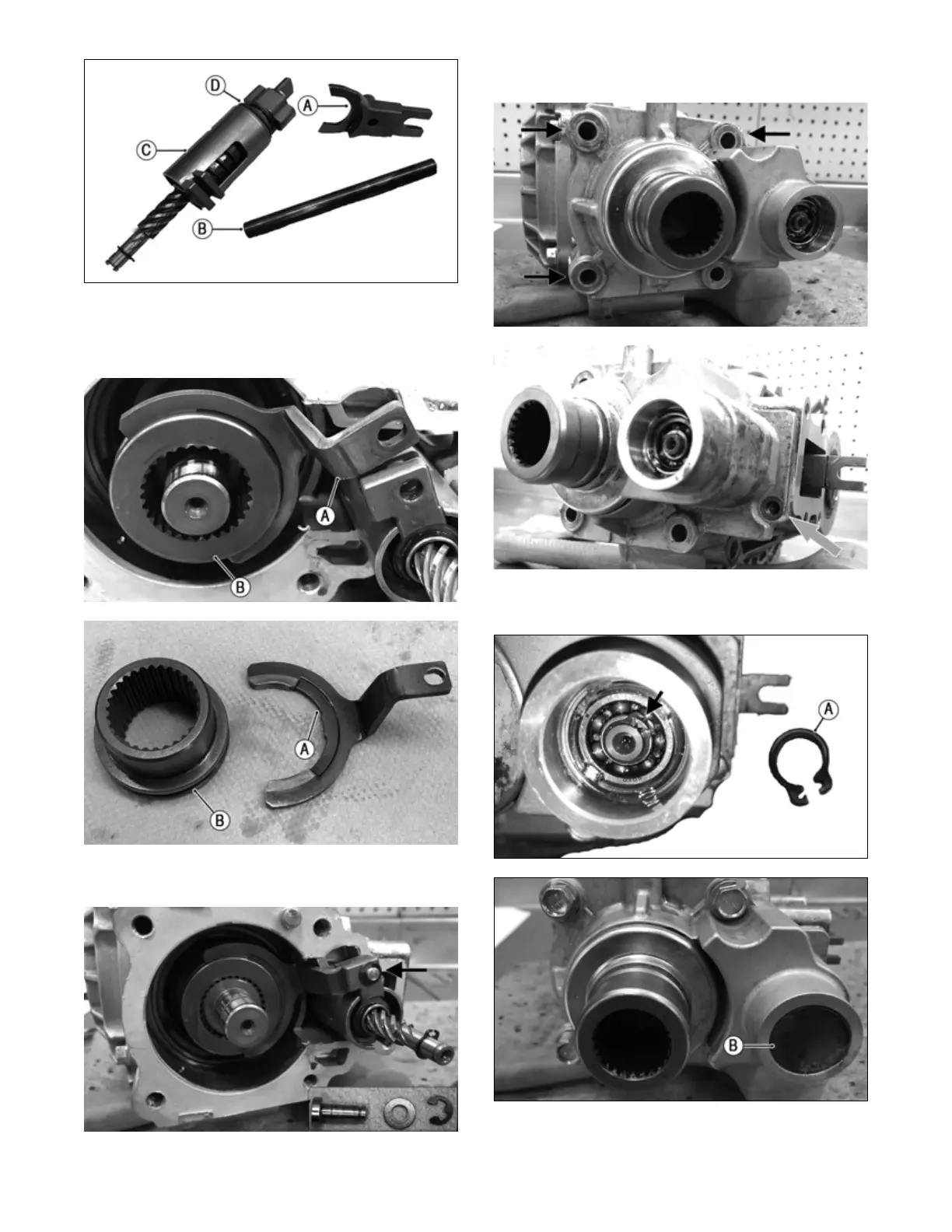

6. Install the drive clutch ring (B) on shaft and then
slide shift fork (A) opening into groove on drive
clutch ring (B). Rotate shift fork handle down in tabs
on shift mechanism.
OHA175
OHA176
7. Install pin and washer through shift mechanism tabs
and secure with retaining clip.
OHA174
8. Install the drive side cover housing and secure with
the three 12 mm screws and one 8 mm screws.
OHA171
OHA172
9. Install retaining snap ring (A) on shifting mechanism
shaft. Install a new seal (B).
OHA170
OHA196
10. Install the actuator on the front differential (see Front
Drive Actuator section).
