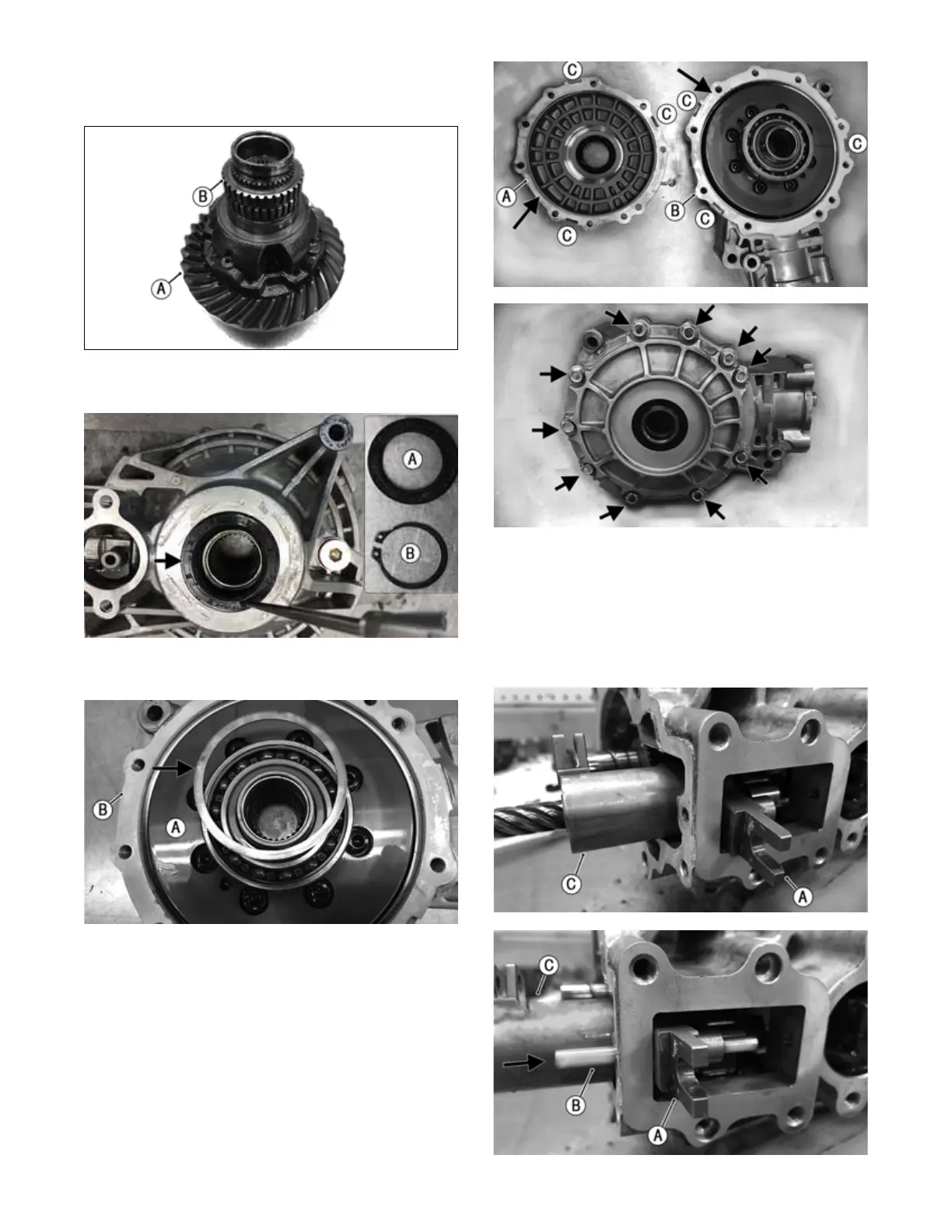

Front Differential Unit Assembly
1. Place the ring gear (B) on the differential carrier (A)
and install the differential carrier in gear case half.
OHA184
2. Secure the differential carrier in the gear case with
retaining ring (B) and install a new seal (A).
OHA183
3. After differential (A) is secured in gear case half (B),
install any shims removed during disassembly.
OHA182
4. Insure sealing surfaces are clean and free of debris.
Install the front differential cover (A) to the case (B)
and secure with ten screws.
NOTE: Match pry bar locations (C)
OHA181
OHA179
5. Install shift mechanism (C). Install the actuator shift
fork (A) in window aligning fork with barrel face (D)
of shift mechanism. Slide pin (B) through case, cap-
turing shift fork.
NOTE: The shift mechanism is serviced as an
assembly, and must be replaced as an assembly if any
part is damaged.
OHA195
OHA177A
