109
OHA189
OHA190

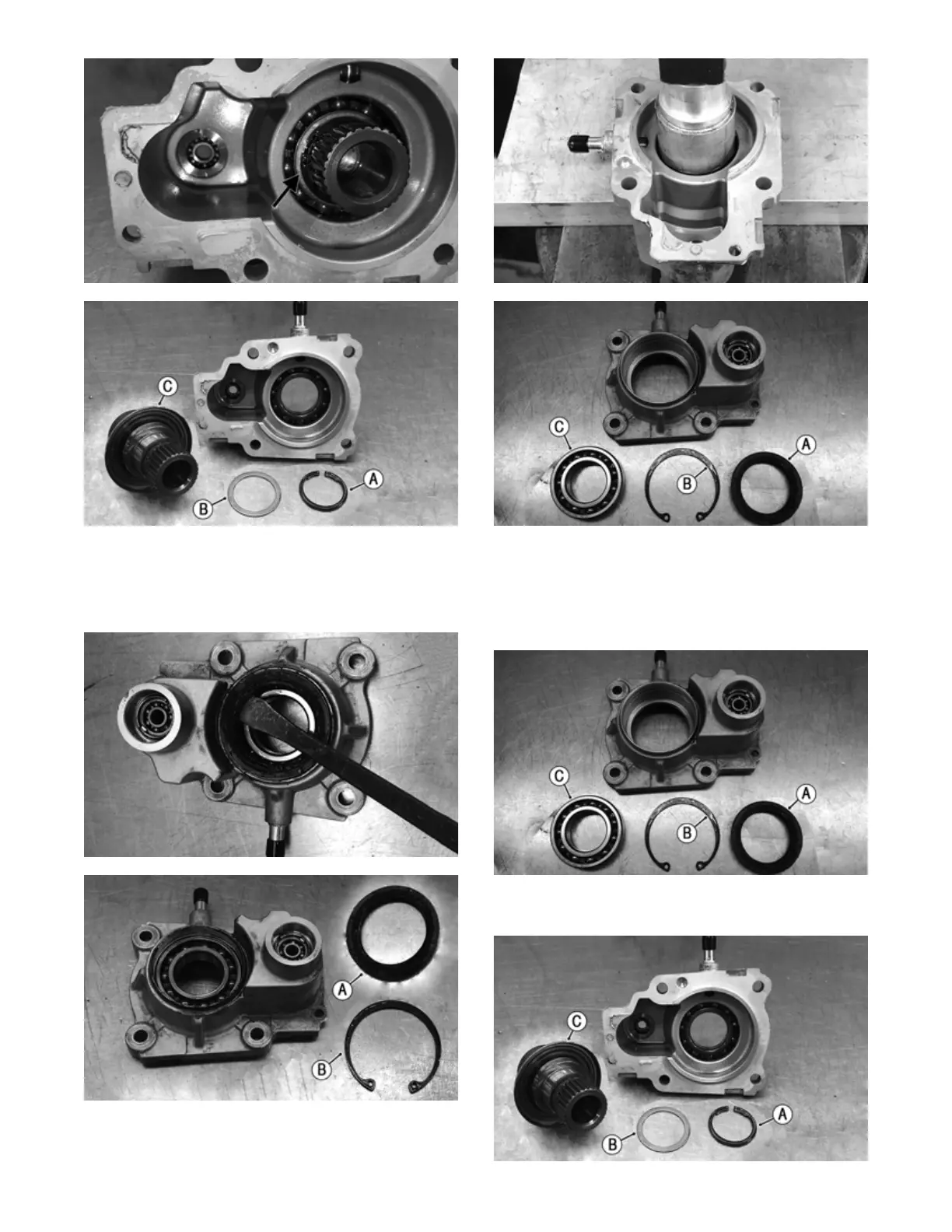

2. Remove and discard the outboard seal (A). Then
remove retaining ring (B).
NOTE: Use care to not damage mating surface
during removal of outboard seal (A).
OHA191
OHA192
3. Press out bearing (C) and inspect. Replace if needed.
OHA193
OHA194
Drive Side Housing Assembly
1. Press in bearing (C). Install retaining ring (B) and
new outboard seal (A).
OHA194
2. Install input shaft (C). Install washer (B) and secure
inner retaining ring (A).
OHA190
To Next Page
