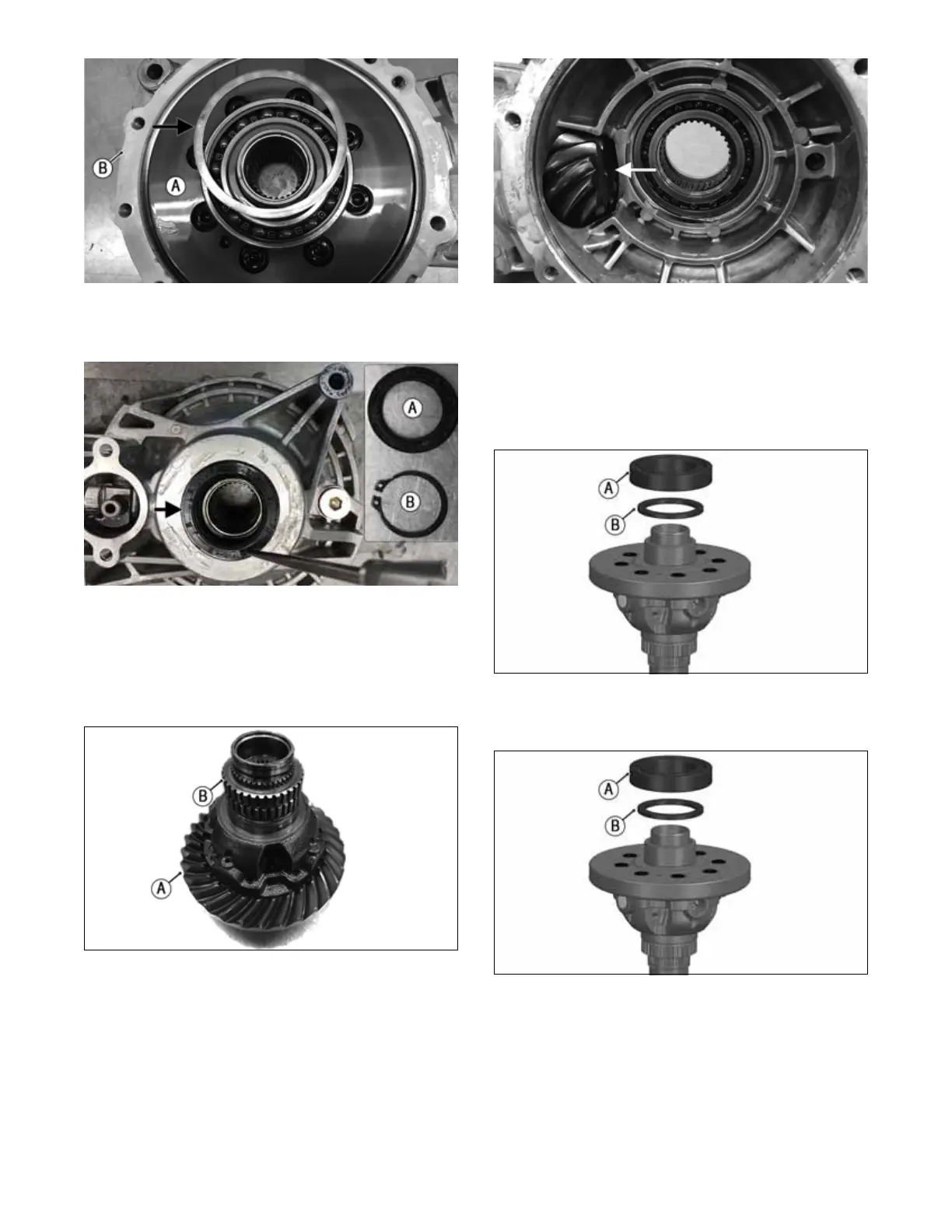

9. Pry the seal (A) off the case, being careful not to
damage sealing surface, and remove the retaining
ring (B).
OHA183
10. Press out the differential carrier (A), which can now
be serviced. Account for ring gear (B) (see Servicing
Differential section).
NOTE: The differential carrier is serviced as an
assembly, and must be replaced as an assembly if any
part is damaged.
OHA184
11. The pinion gear can be inspected in the case at this
point.
NOTE: The pinion gear is serviced as an assembly
with the gear case, and must be replaced as an assem-
bly if any part is damaged.
OHA185
Servicing Front Differential
NOTE: Differential Carrier is serviced as an assem-
bly.
Front Differential Disassembly
1. Inspect bearing (A), and remove and replace if
needed. Account for spacer (B).
OHA188
Front Differential Assembly
1. Install spacer (B) and bearing (A).
OHA188
Servicing Drive Side Housing
1. Remove inner retaining ring (A) and washer (B).
Then remove input shaft (C).
To Next Page
