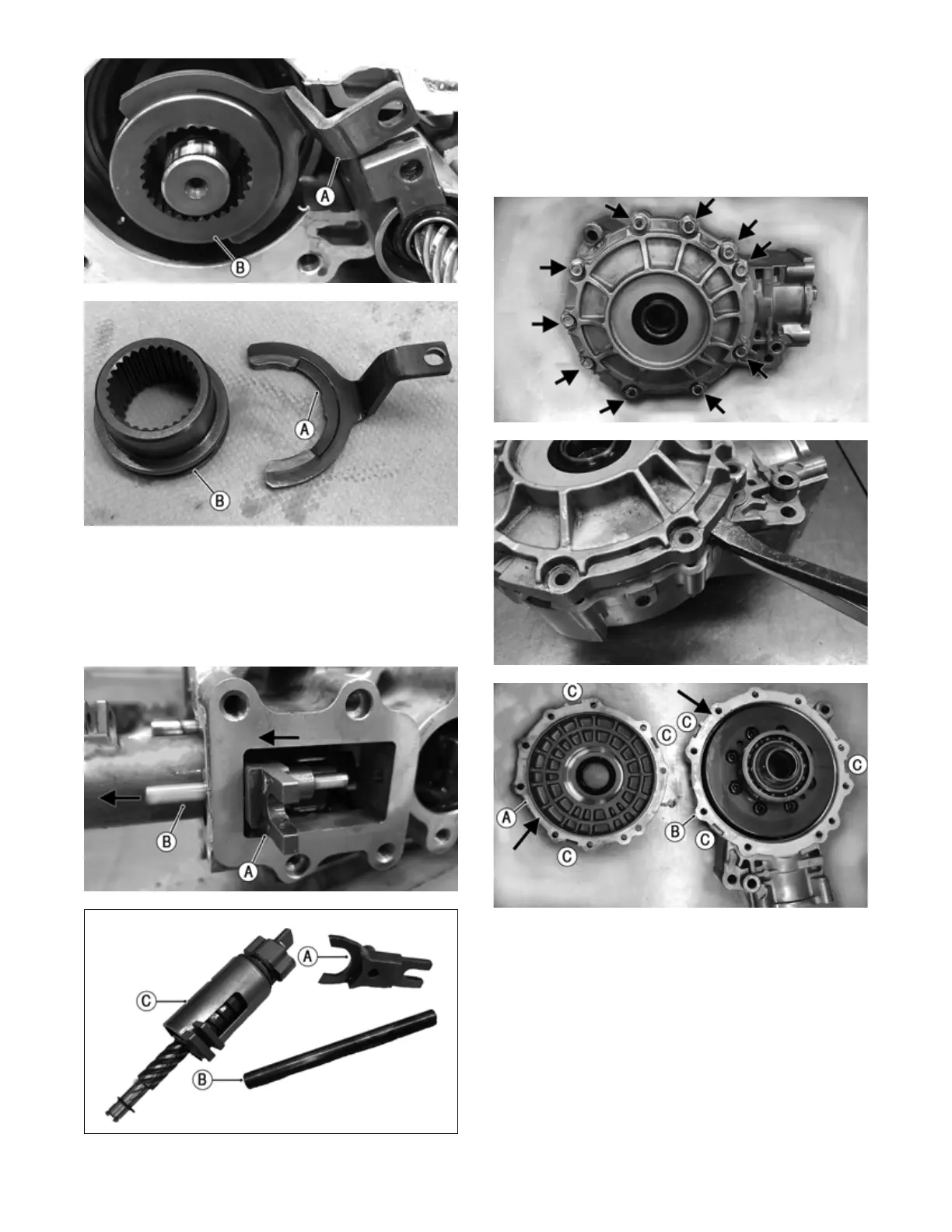

6. To remove the actuator shift fork (A), slide forward
and pull out pin (B). Then remove shift mechanism
(C).
NOTE: The shift mechanism (C) is serviced as an
assembly and must be replaced as an assembly if any
part is damaged.
OHA177
OHA178
7. Split the front differential cover (A) from the case
(B) by removing 10 screws and pry apart at the three
dedicated pry notch locations (C), being careful not
to damage sealing surfaces.
NOTE: Use two pry bars (or pry bar and screw-
driver) together at each location to make splitting eas-
ier.
OHA179
OHA180
OHA181
8. Keep track of any shims during disassembly. Differ-
ential (A) is in case half (B) and can be removed for
service.
