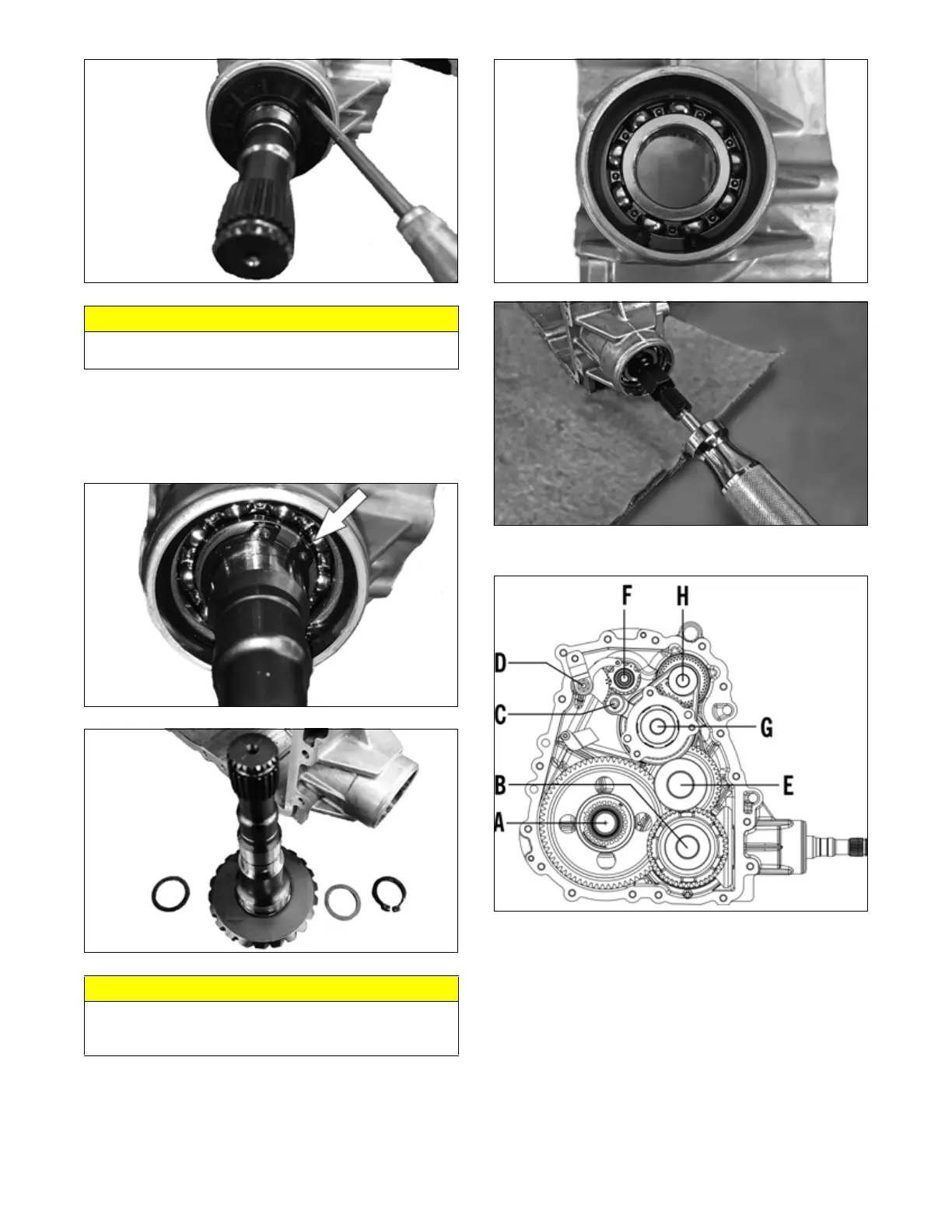

NOTE: The pinion seal must be replaced if
removed.
6. Remove the inner snap ring on the front output shaft;
then using a mallet, tap the front output shaft down
into the case half. Account for the shim.
NKL023
NKL0024
7. Remove the outer snap ring and shim securing the
ball bearing; then using an appropriate tool, remove
the bearing.
NKL025
NKL026
SERVICING COMPONENTS
TA139
NOTE: If any bearing is removed, install a new
bearing using a suitable press.
NOTE: Keep all components in order for assem-
bling purposes.
A. Output Gear
1. Inspect the bearings for free and smooth turning. If
either bearing does not turn freely, it must be
replaced.
CAUTION
There is a ball bearing below the pinion seal. Use cau-
tion not to damage the bearing while removing the seal.
CAUTION
When tapping the output shaft, make sure not to drop
the shaft when it releases from the bearing to avoid
gear damage.
