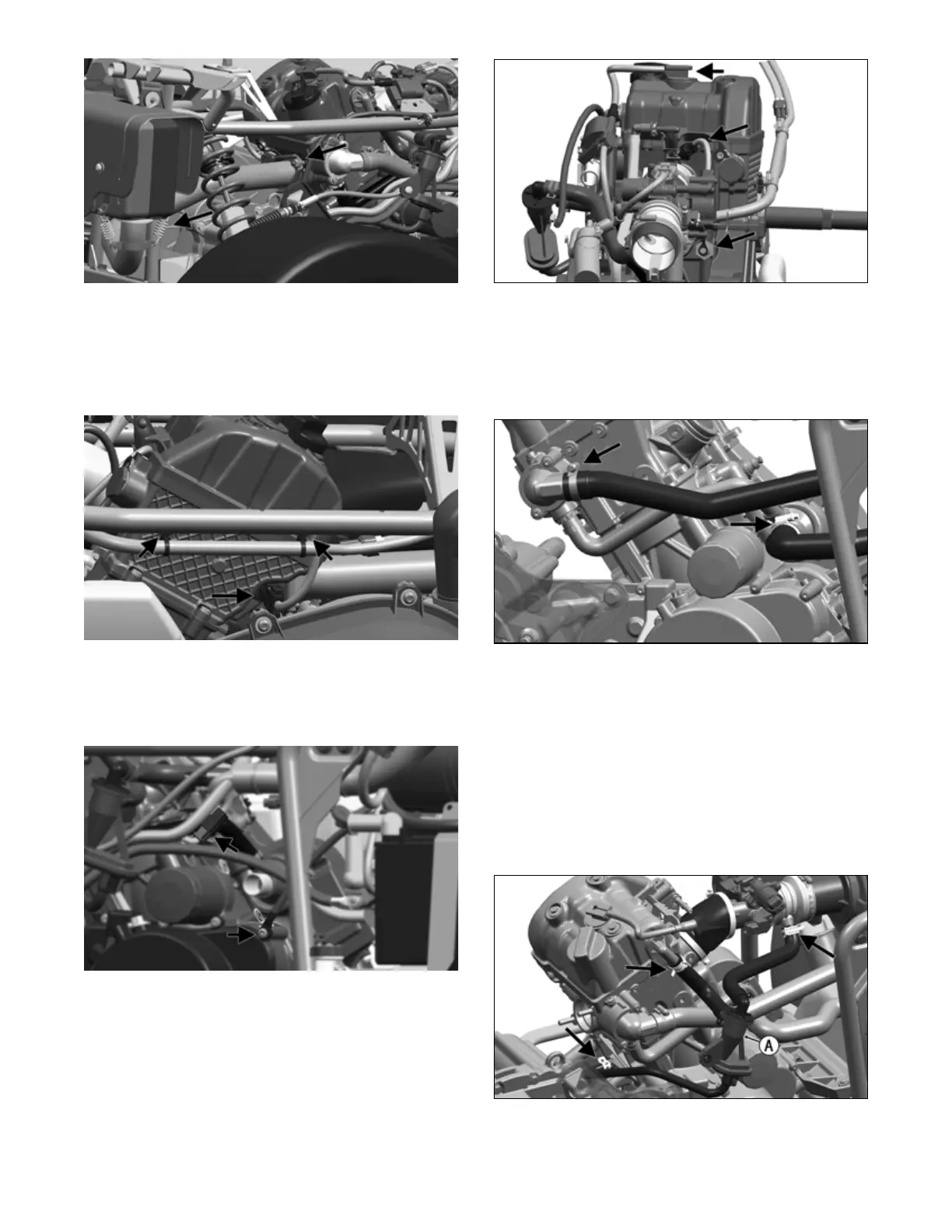

6. Reposition harness and secure to frame in previously
noted position with cable ties. Connect taillight.
7. Connect coolant temperature sensor connector, and
replace any push cable ties holding wire harness to
upper frame.
OHA148
8. Remove screw and reposition battery ground wire.
Replace screw. Tighten to 8 ft-lb (10.8 N-m). Con-
nect crankshaft position sensor (CPS) and stator con-
nectors.
OHA140
9. Replace spark plug boot in engine and connect fuel
injector connection to engine. Secure oil pressure
switch eyelet with nut.
NOTE: Spark plug cup must be seated properly.
Use lubrication as necessary to install.
OHA139.
10. Assemble starter motor cable to the stud on starter
and secure with nut. Tighten to 35 in-lb (4 N-m).
11. Install coolant supply hose and coolant return hose.
Secure with new clamps. Tighten to 30 in-lb (3.4
N-m).
OHA13
12. Remove tape used to cover and seal the intake open-
ing.
13. Slide intake assembly forward until manifold intake
(A) engages with engine. Replace engine side clamp
and tighten to 30 in-lb (3.4 N-m).
NOTE: Replace throttle body if removed to allow
clearance (see Fuel/Lubrication/Cooling section).
14. Replace the two screws securing the air filter hous-
ing located in the glove box. Tighten to 8 ft-lb (10.8
N-m).
OHA137
To Next Page
