61

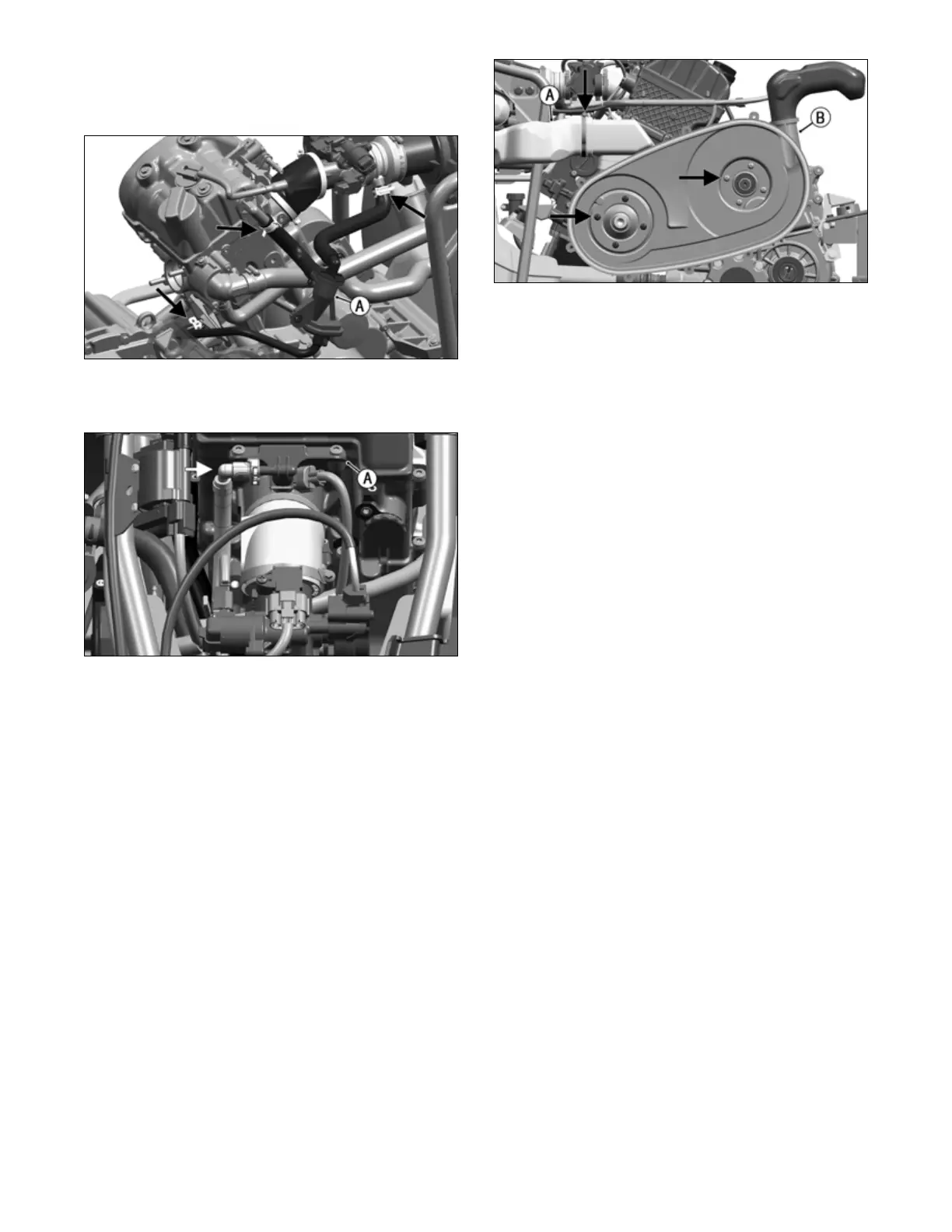

15. Install the cyclone assembly’s (A) two crankcase
vent hoses to engine and vent return hose to manifold
intake. Secure with hose clamps. Tighten to 30 in-lb
(3.4 N-m).
OHA137
16. Connect the gasline hose connector to the fuel rail
(A).
OHA076
17. Install intake duct (A). Then install inner clutch
cover (B). Secure the clutch air inlet duct to air
intake duct (A) with clamp. Tighten to 30 in-lb (3.4
N-m). Secure inner clutch assembly to the engine
and transaxle with eight screws. Tighten to 4 ft-lb
(5.4 N-m).
OHA136
NOTE: Before installing the drive clutch, be sure to
wipe clean both the crankshaft taper and clutch
mounting taper using a clean towel.
18. Install clutch cover and clutch (see Installing Drive
and Driven Clutch sub-section in Engine/Transmis-
sion section).
19. Add coolant and oil per specifications.
20. Install right- and left-hand footwells, rear fender and
rack, right- and left-hand side panels, and seat (see
Steering/Body/Controls section).
