transnorm TS 4800 - Page 72

Maintenance and repair
Loosening/tensioning/adjusting the drive belt
72
Operating instructions: Outfeed conveyor TS 4800
Version 3.6ENG, 27.01.2020

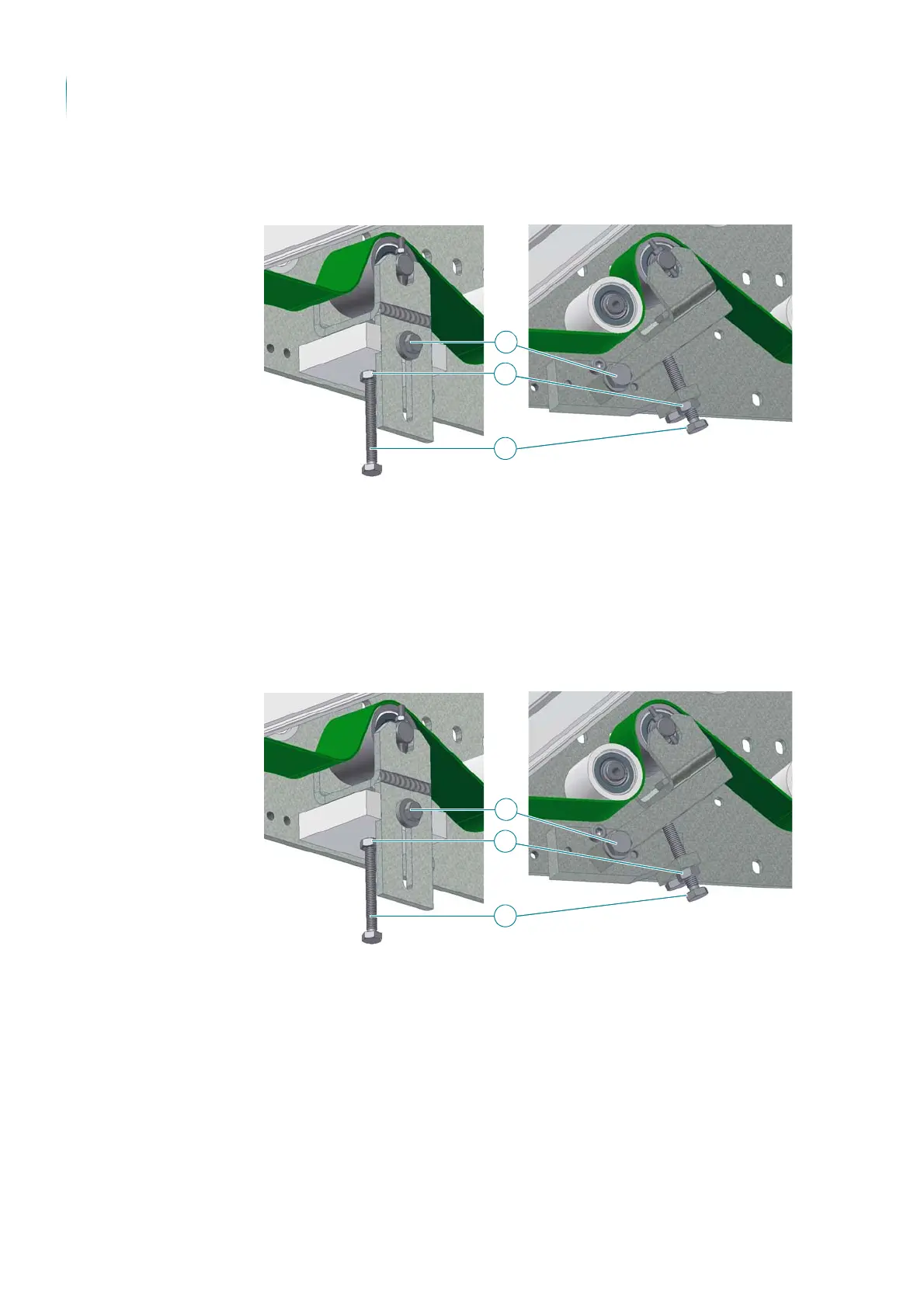

 Loosen the drive belt
Complete the following steps:
1. Release the counternut (1).
2. Release the joining element (2).
3. Completely loosen the belt by turning the tensioning bolt (3) anti-clock-
wise.
 Drive belt is loosened.
 Tension the drive belt
Complete the following steps:
1. Release the counternut (1).
2. Release the joining element (2).
3. Tension the belt by turning the tensioning bolt (3) clockwise.
? When tensioning, the belt may only be stretched by 0.5 %.
 Mark the belt with a tape or thin marker to check the stretching of the
belt.
1
3
2
1
3
2
