Maintenance and repair
Replacing the gear motor
79

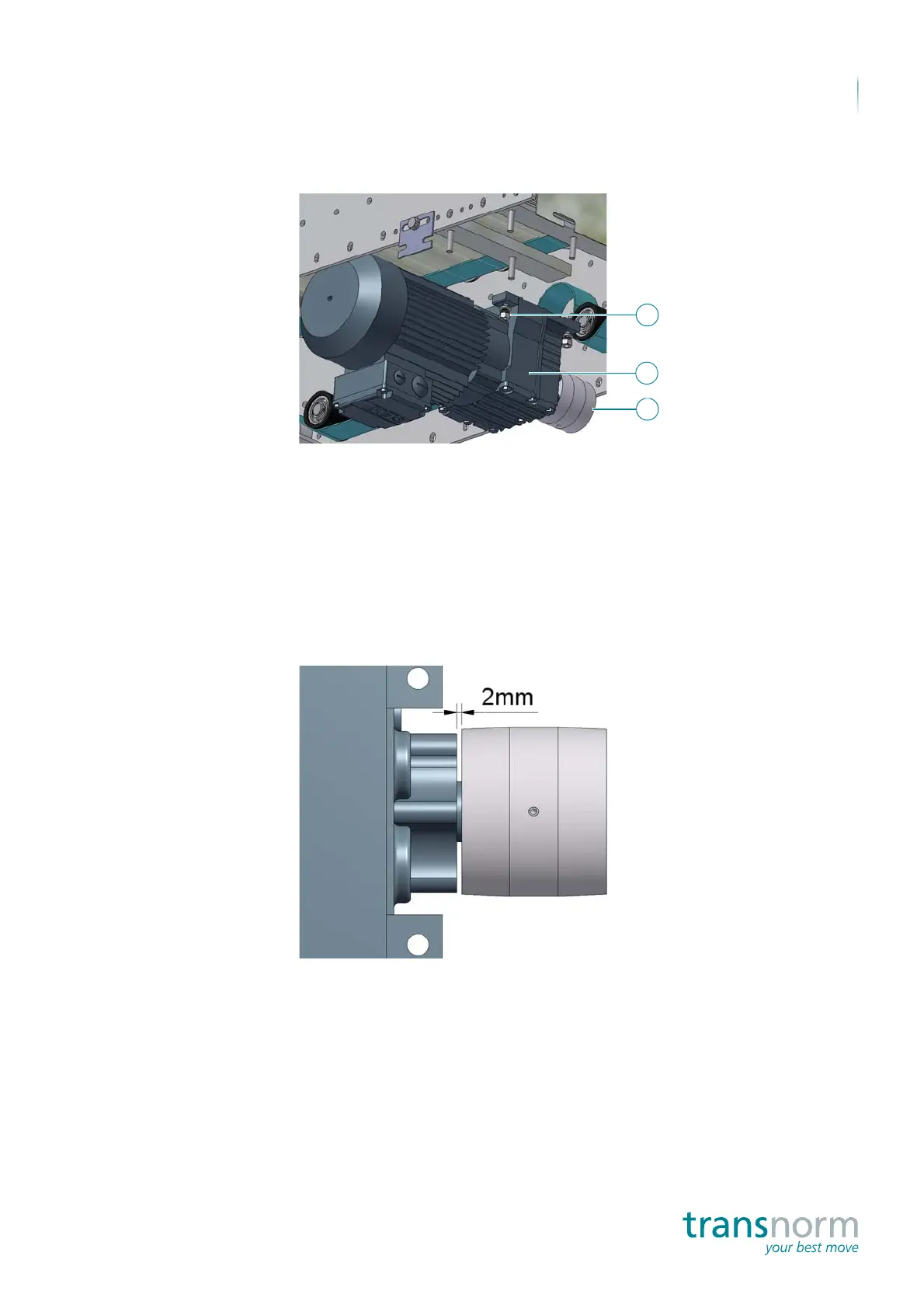

2. Support the gear motor (1) with hoists.
3. Remove the joining elements (2) of the gear motor.
4. Remove the gear motor and place it on an appropriate surface.
5. When replacing the gear motor, disassemble the drive pulley (3).
Gear motor is disassembled.
Assemble the gear
motor
Complete the following steps:
1. When installing the drive pulley, set dimension x = 2 mm.
2. Assembly is carried out in the reverse order.
Gear motor is assembled.
