Maintenance and repair
Replacing the swivel roller assembly
86
Operating instructions: Outfeed conveyor TS 4800
Version 3.6ENG, 27.01.2020

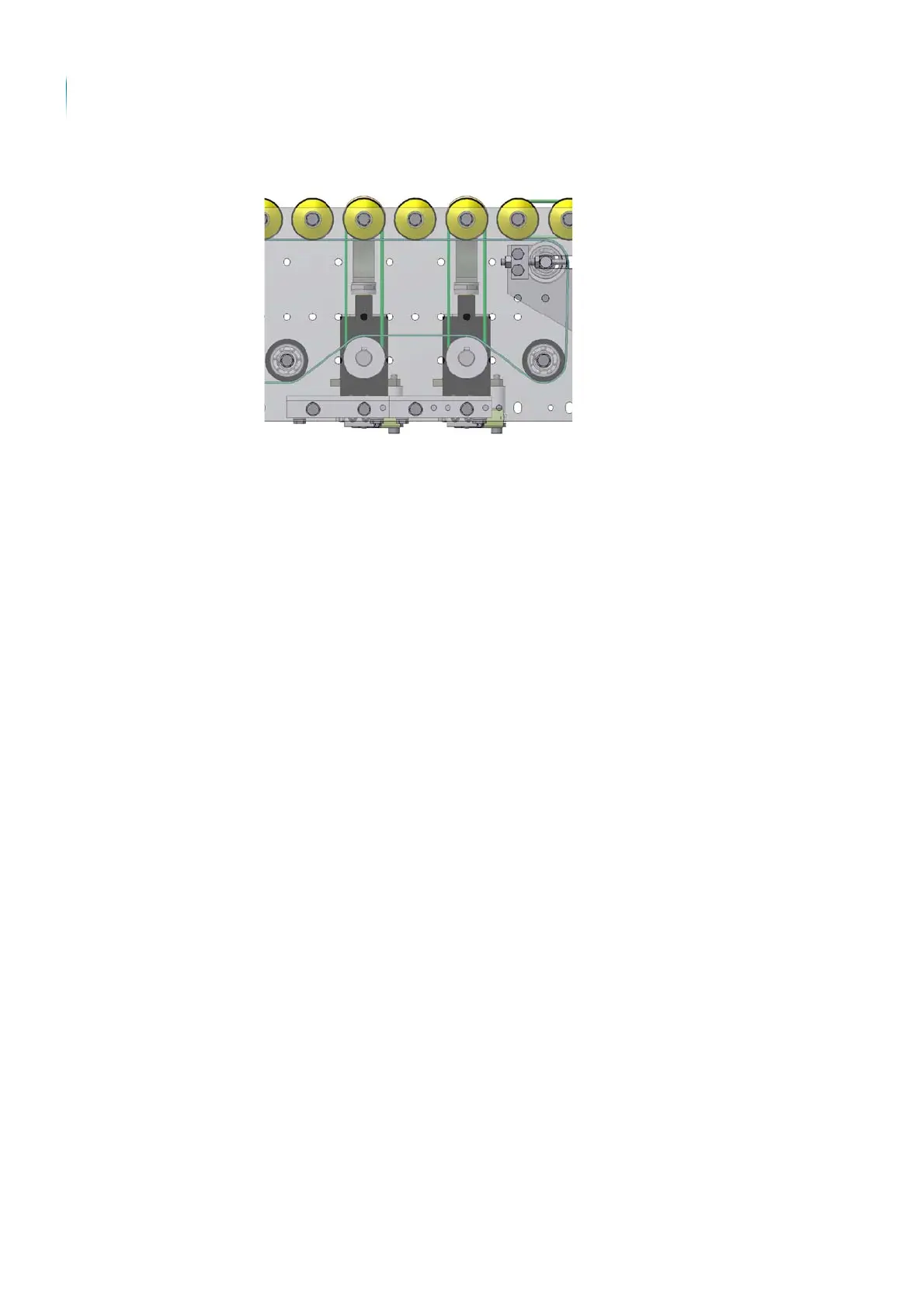

2. Make sure that the drive belt is on track.
 Swivel roller assembly is assembled.
 Tension the drive belt
Complete the following steps:
 Proceed as described in the section on tensioning/adjusting the drive
belt.
 Drive belt is tensioned.
 Assemble the idler
rollers
Complete the following steps:
 Proceed as described in the section on assembling the idler rollers.
 Idler rollers are assembled.
 Assemble the finger
guard
Complete the following steps:
 Assembly is carried out in the reverse order.
 Finger guard is assembled.
 Assemble the bottom
cover
Complete the following steps:
 Assembly is carried out in the reverse order.
 Bottom cover is assembled.

Swivel roller assembly is replaced.
