Maintenance and repair
Replacing the swivel roller assembly
85
Disassemble the
swivel roller
assembly, alterna-
tive method
Complete the following steps:

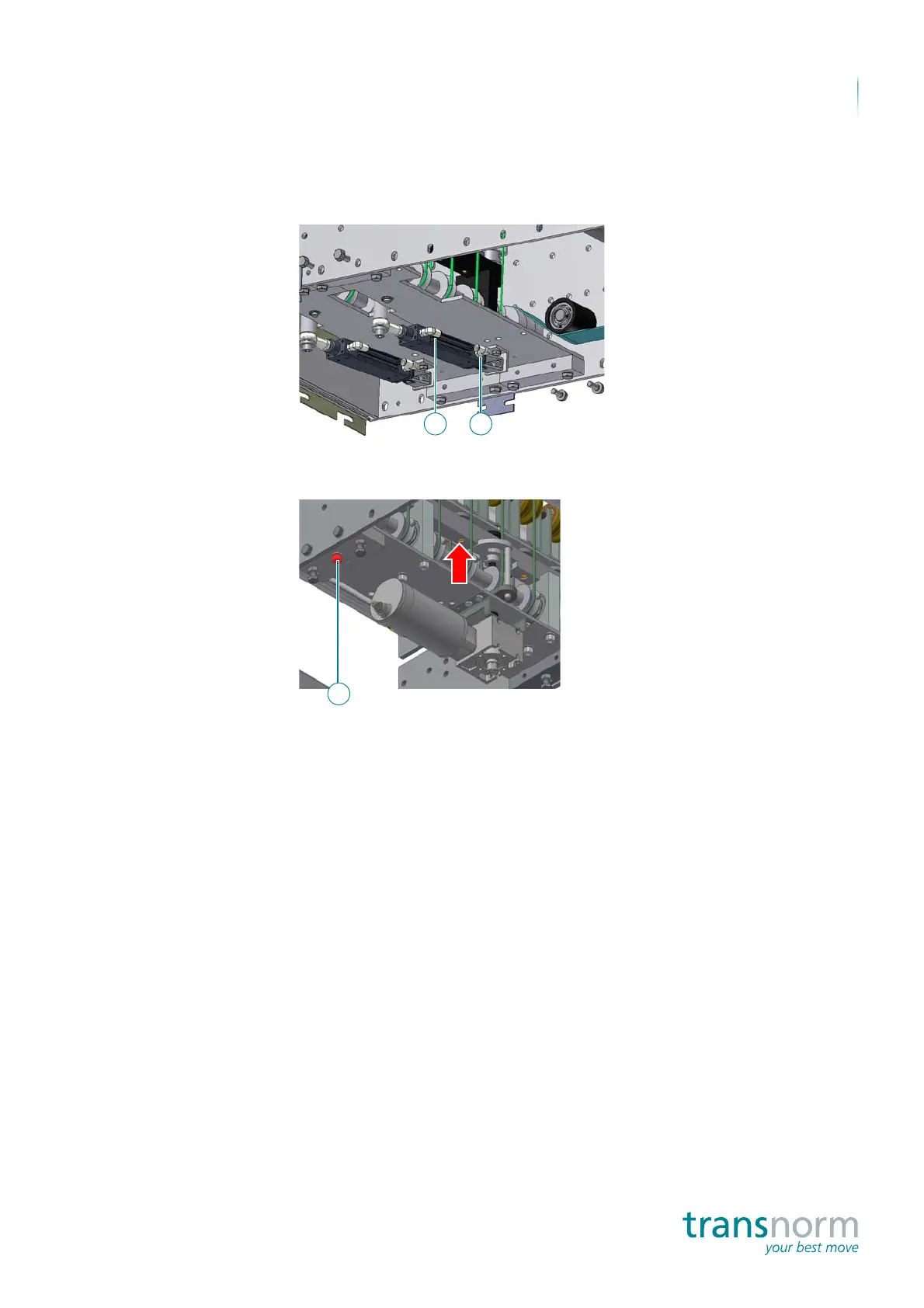

1. Remove the pneumatic tubes from the pneumatic cylinder (1).
To do this, press down the blue circlip on the plug-in connectors.
2. Remove the joining elements (2).
3. Raise the entire swivel roller assembly and remove.
Swivel roller assembly is disassembled.
Assemble the swivel
roller assembly
Complete the following steps:
1. Assembly is carried out in the reverse order.
