Servicing the swivel roller assembly
88
Operating instructions: Outfeed conveyor TS 4800
Version 3.6ENG, 27.01.2020
 Replace
the swivel roller

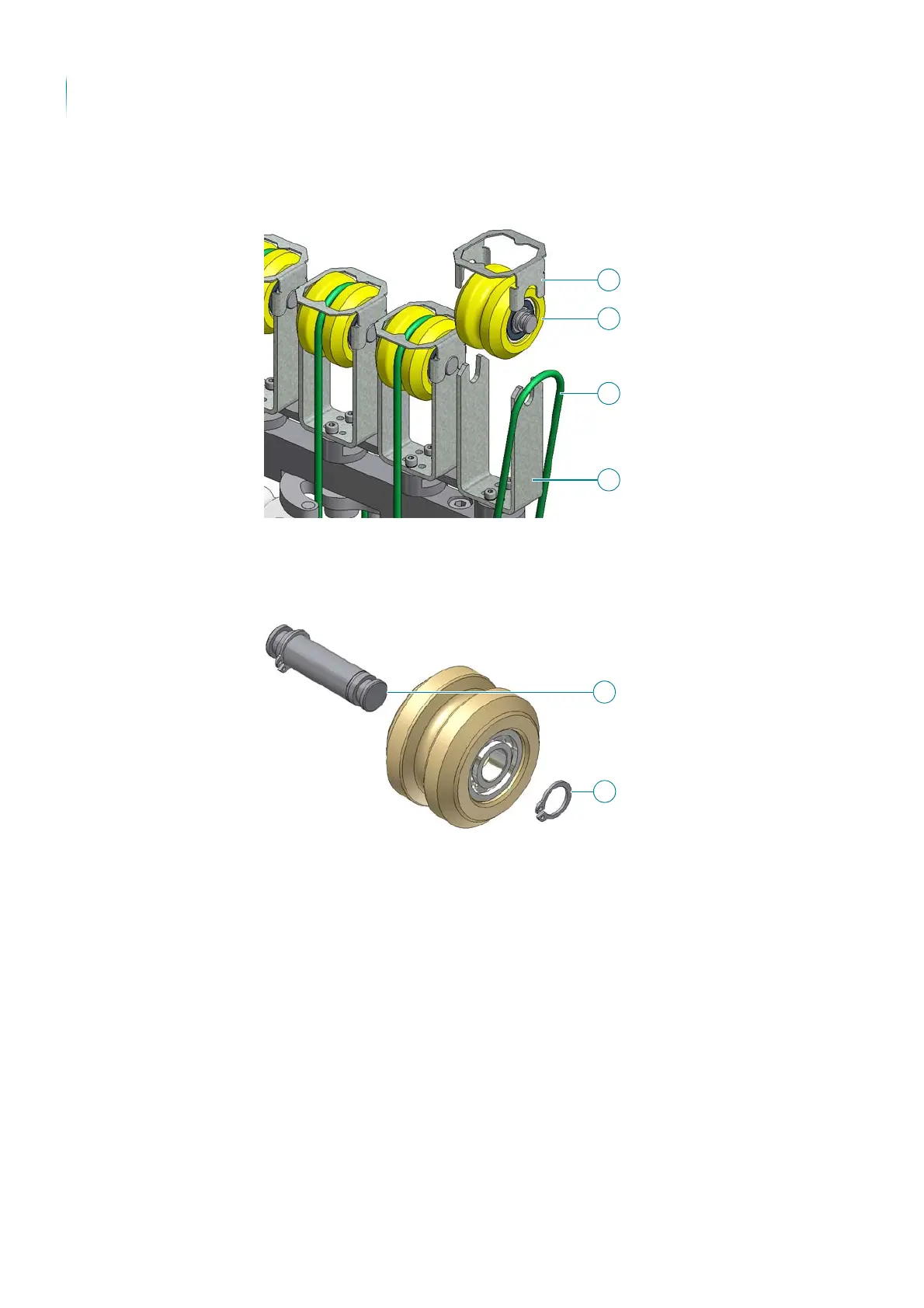

Complete the following steps:
1. Remove the finger guard plate (1).
2. Pull the round belt (3) off the swivel roller (2).
3. Pull the swivel roller upwards and out of the roller holder (4).
4. Remove the circlip (6) from the axle (5).
5. Pull the axle out of the swivel roller.
6. Assembly is carried out in the reverse order.
 Swivel roller is replaced.
