Servicing the swivel roller assembly
89
 Replace the swivel
roller holder
Complete the following steps:

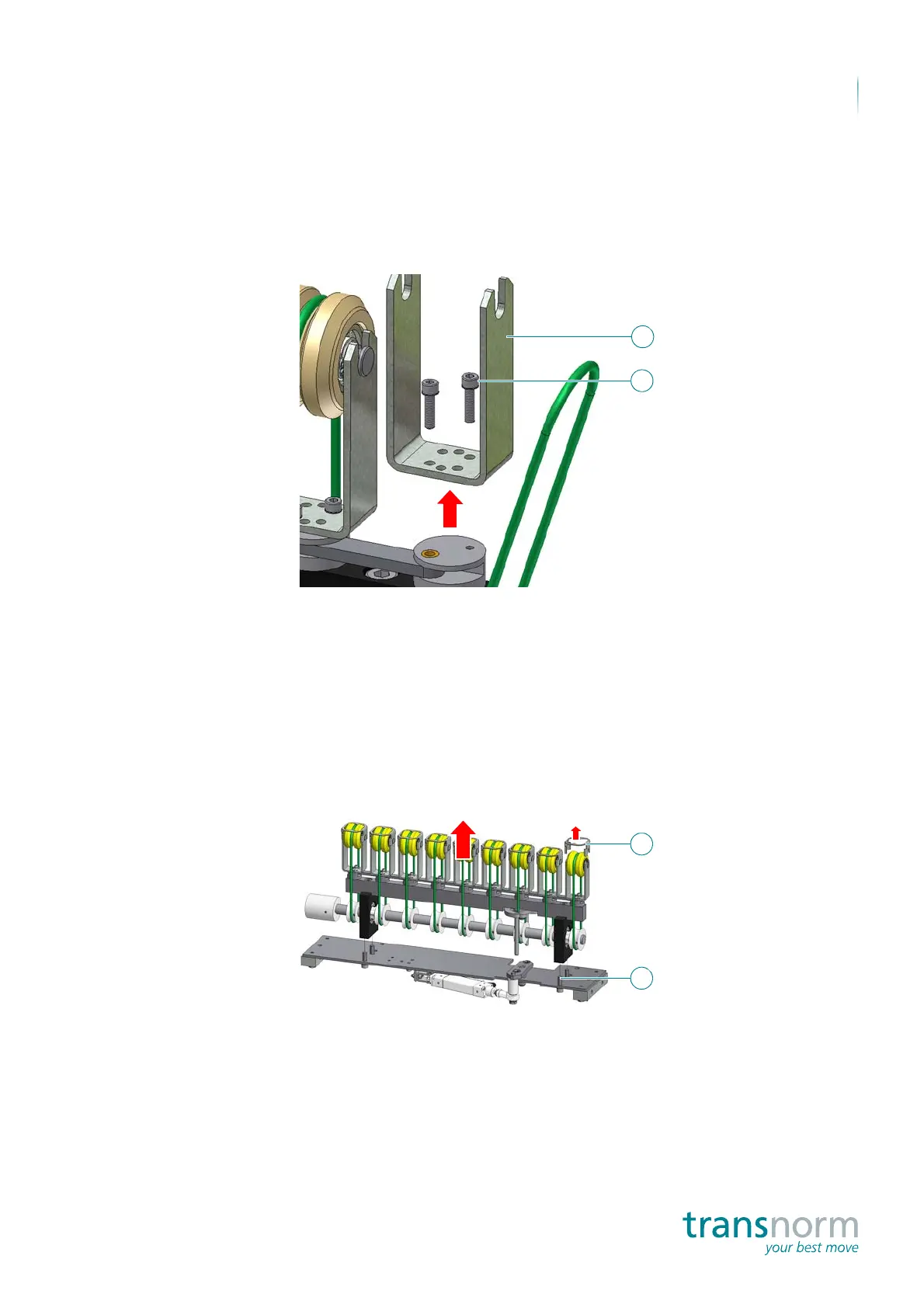

1. Disassemble the swivel roller. Proceed as described in the section on
replacing the swivel roller.
2. Disassemble the joining elements (1).
3. Remove the swivel roller holder (2).
4. Assembly is carried out in the reverse order.
 Observe the correct position of the swivel roller holder.
 Swivel roller holder is replaced.
 Replace
the swivel plate
Complete the following steps:
1. Remove the finger guard plates (1) and joining elements (2) for the
carrier plate.
1
2
2
1
