Maintenance and repair
Servicing the swivel roller assembly
90
Operating instructions: Outfeed conveyor TS 4800
Version 3.6ENG, 27.01.2020

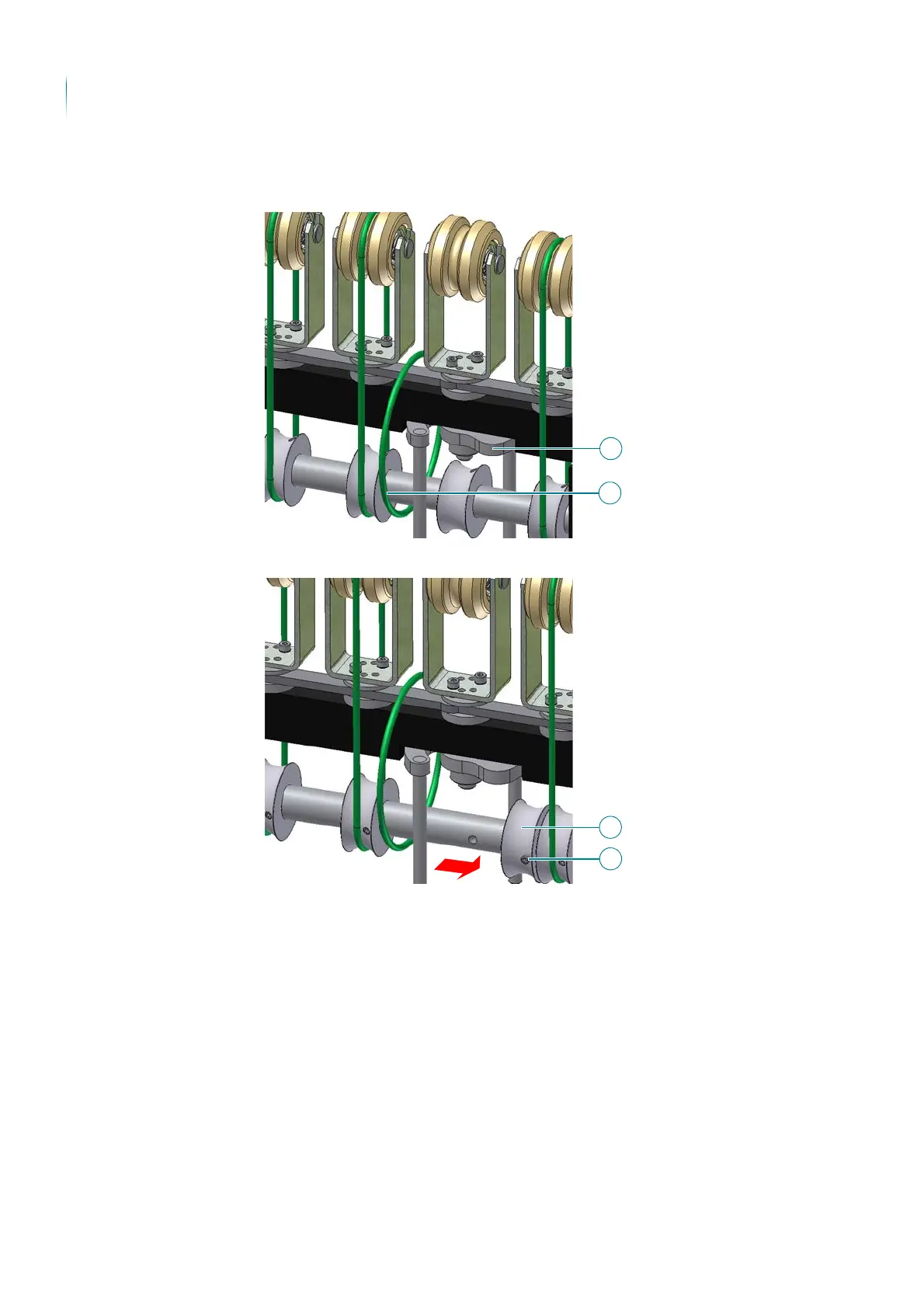

2. Pull the round belt (4) off the swivel roller above the swivel plate (3) and
place it to one side.
3. Release the grub screw (6) of the belt pulley (5) and push it to the side.
4
3
6
5
