transnorm TS 4800 - Page 91

Maintenance and repair
Servicing the swivel roller assembly
91

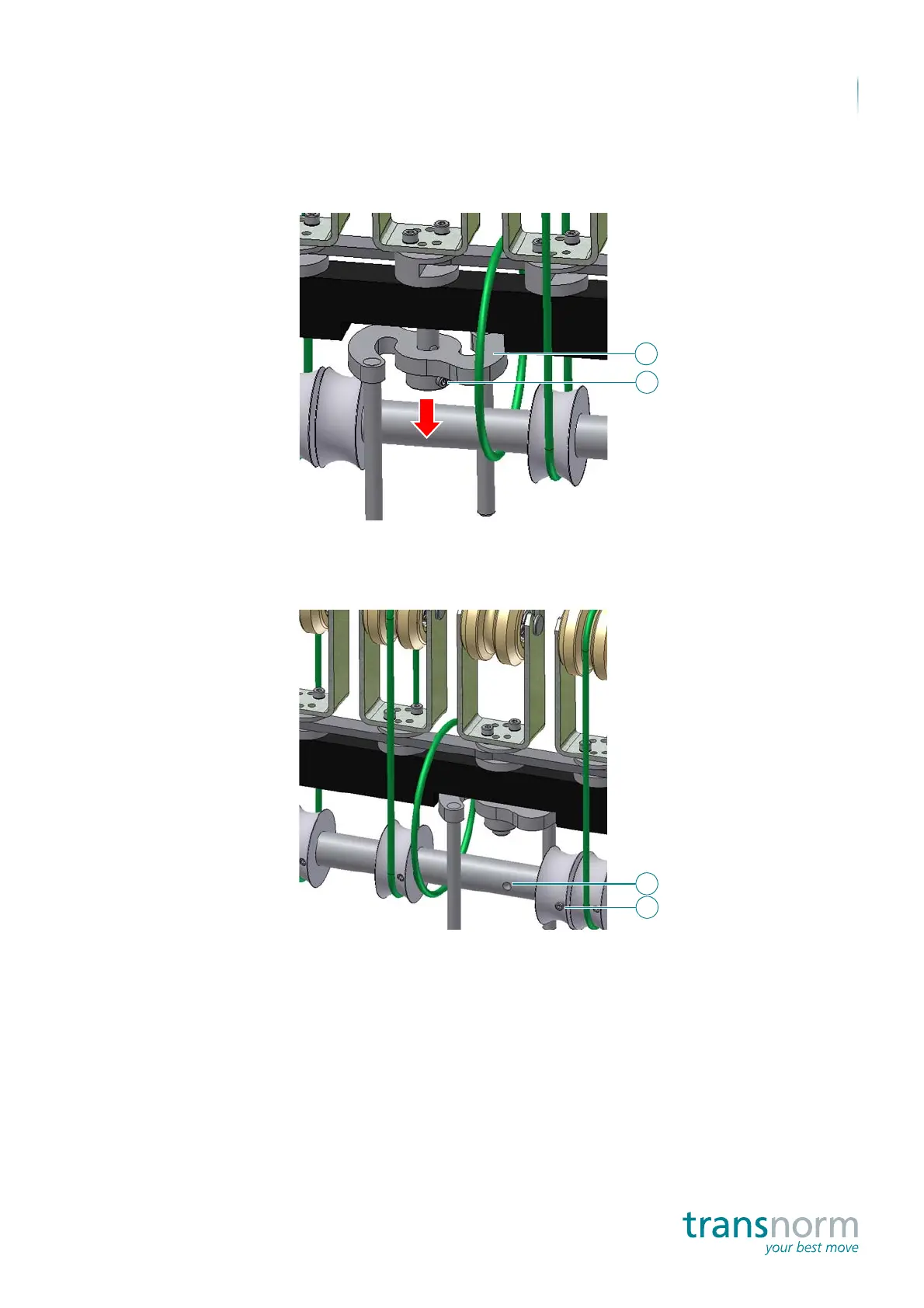

4. Release the grub screw (7) of the swivel plate (3) and pull the swivel
plate off the journal.
5. Assembly is carried out in the reverse order.
6. Check that the grub screw (6) of the belt pulley is seated in the centre
hole (8).
 Swivel plate is replaced.
3
7
6
8
