© Copyright 2023 TRENDnet. All Rights Reserved.
5
TRENDnet User’s Guide
Web Smart Switch Series

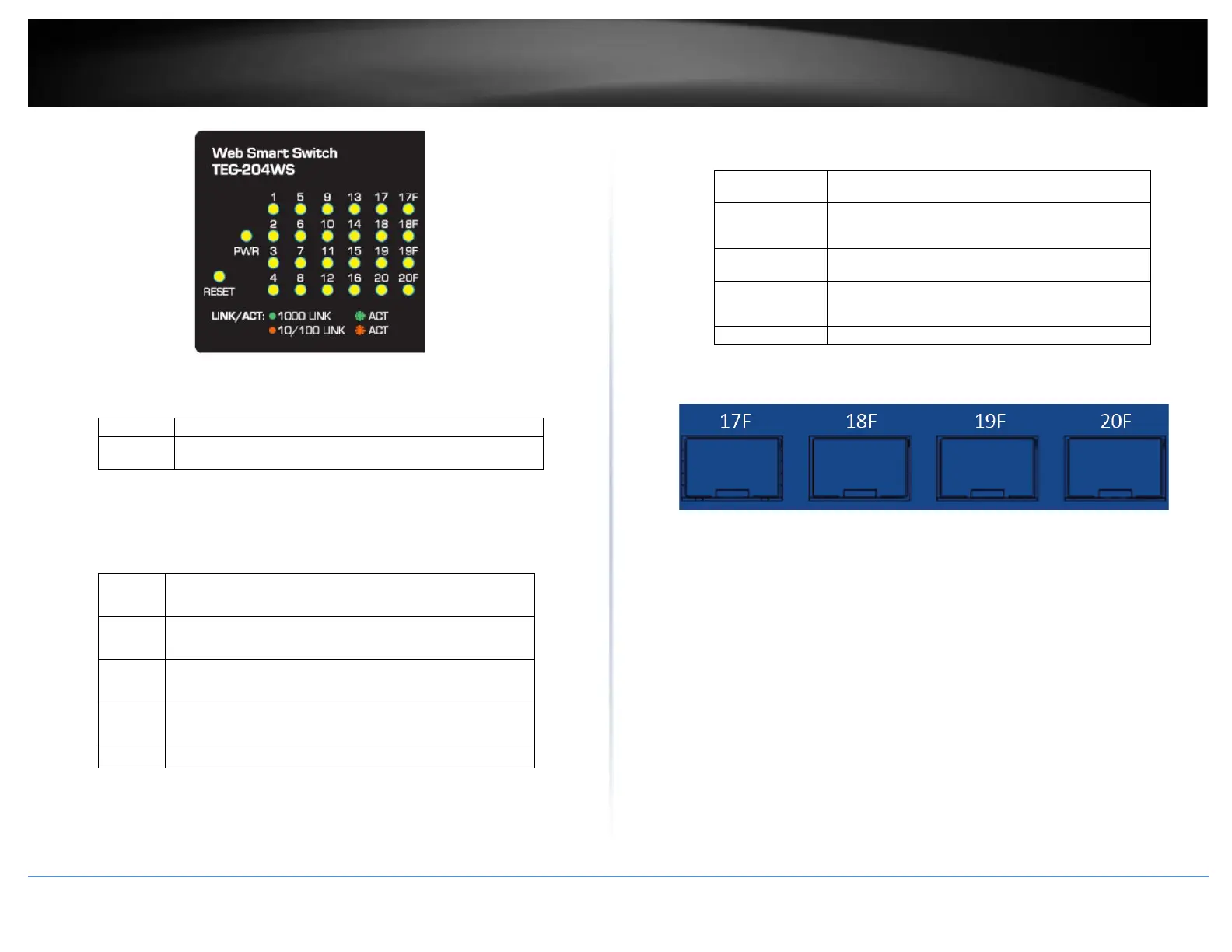

Diagnostic LEDs
Power LED
On
:
When the Power LED is on, the device is receiving power.
Off
:
When the Power turns off, the power cord is not
connected or the device is not receiving power.
Gigabit Ethernet Port LEDs (1-20)
Link/Activity
Green
on
:
Amber
on
:
Green
Blinking
:
Amber
Blinking
:
Off
SFP Slots (17F-20F)
Link/Activity
Green on
:
When the SFP LED is on, the link established using
the SFP module is operating at 1Gbps speed.
Green blinking
:
When the SFP LED is blinking, the port is
transmitting or receiving data on through the
1Gbps link established.
Amber on
When the SFP LED is on, the link established using
the SFP module is operating at 100Mbps speed.
Amber blinking
When the SFP LED is blinking, the port is
transmitting or receiving data on through the
100Mbps link established.
Off
No link established.
