118 I⁄O Extender Modules

Trident Planning and Installation Guide

Logic Power

Note See Chapter 5 for ground connections.

Feature Specification

Logic power 125 W maximum

Fuse 8 A, slow-acting

Blown fuse indicator 20 mA

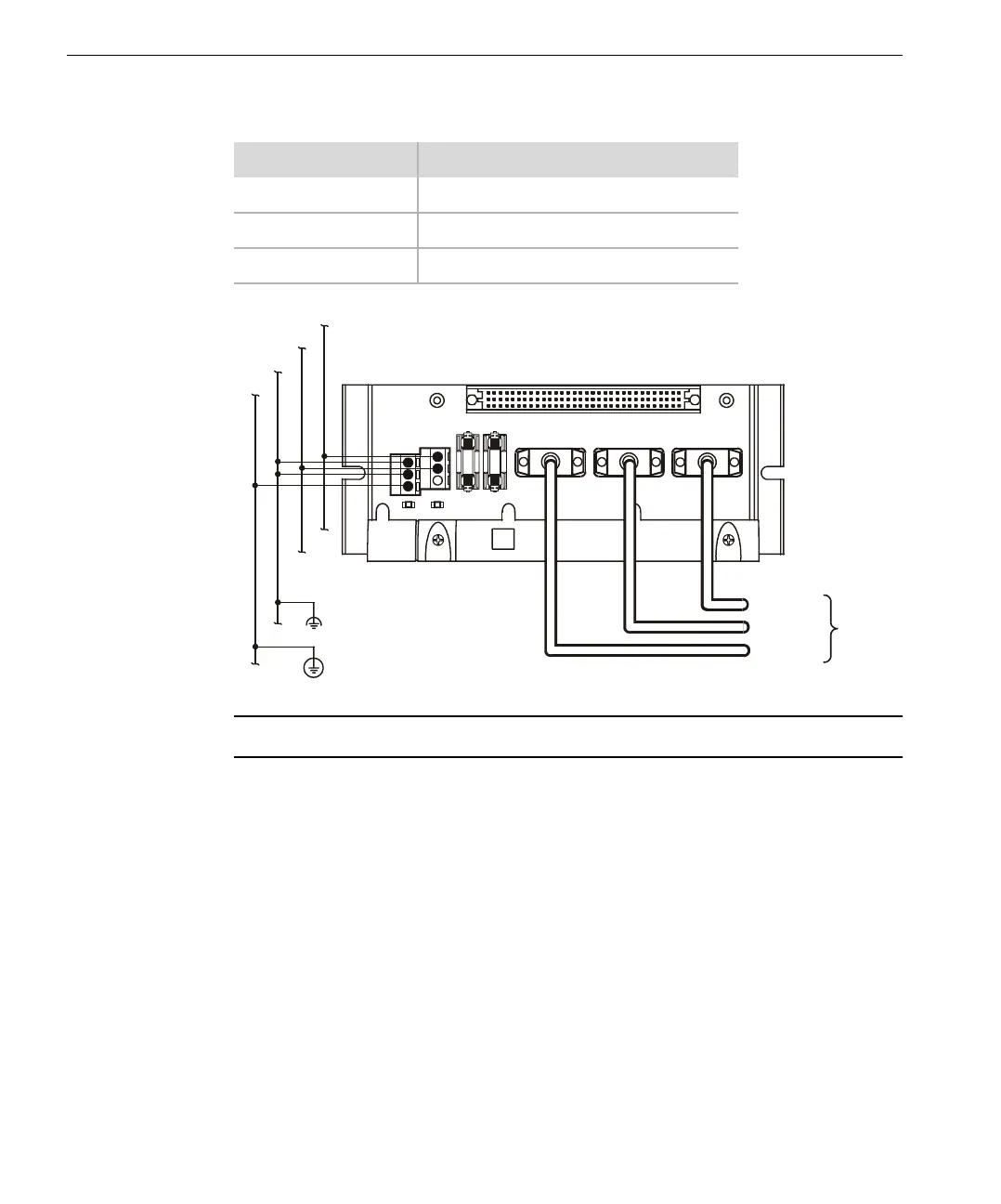

Connecting an I⁄O

Extender Module

J5 J6 J7

Safety

24 V #2

24 V #1

To N ex t

Extender

Module

Channel C

Channel B

Channel A

RTN

F1 F2

DSP1

DSP2

Blown Fuse Indicators
