Triconex Trident - Ethernet 10 BaseT Net1 Connectors; Ethernet 100 BaseTX Net2 Connectors

208 CM Baseplate Connectors
Trident Planning and Installation Guide

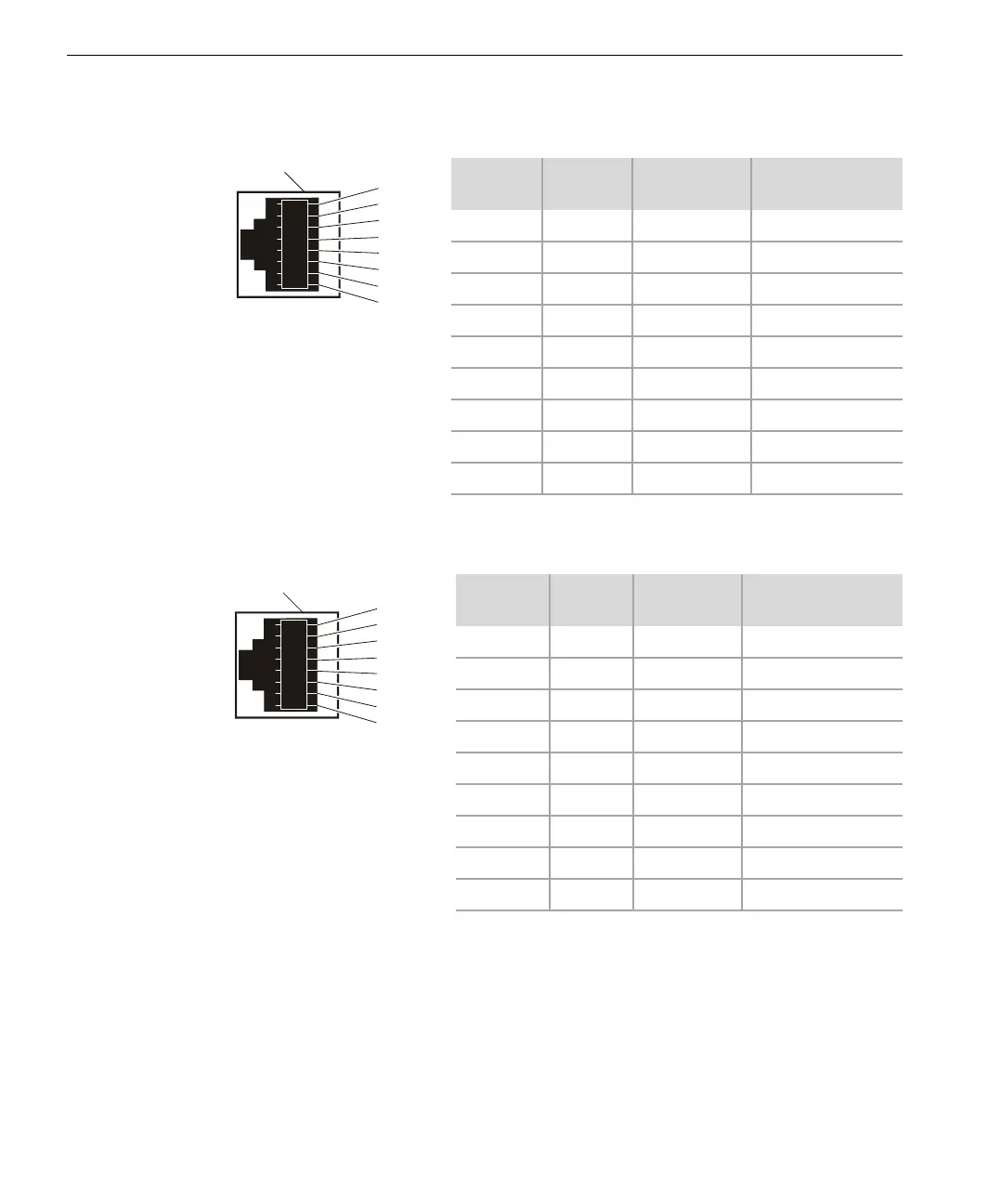

Ethernet 10BaseT Net1 Connectors
Ethernet 100BaseTX Net2 Connectors
RJ-45
Pin
Signal Direction Function
1 TD+ Out Transmit data +
2 TD- Out Transmit data –
3 RD+ In Receive data +
4NC —
5NC —
6 RD- In Receive data –
7NC —
8NC —
Housing Shield — Safety ground
1 TD+
2 TD–
3 RD+
4
5
6 RD
–
7
8
Shield
RJ-45
Pin
Signal Direction Function
1 TD+ Out Transmit data +
2 TD- Out Transmit data –
3 RD+ In Receive data +
4NC —
5NC —
6 RD- In Receive data –
7NC —
8NC —
Housing Shield — Safety ground
1 TD+
2 TD–
3 RD+
4
5
6 RD
–
7
8
Shield
