Triconex Trident - 10 Baset Network Cables for Tristation; 10 Baset Cross-Over Cable

212 10BaseT Network Cables for TriStation
Trident Planning and Installation Guide
10BaseT Network Cables for TriStation
The following network cables are available for connecting the MPs to a TriStation
PC.
10BaseT Cross-Over Cable

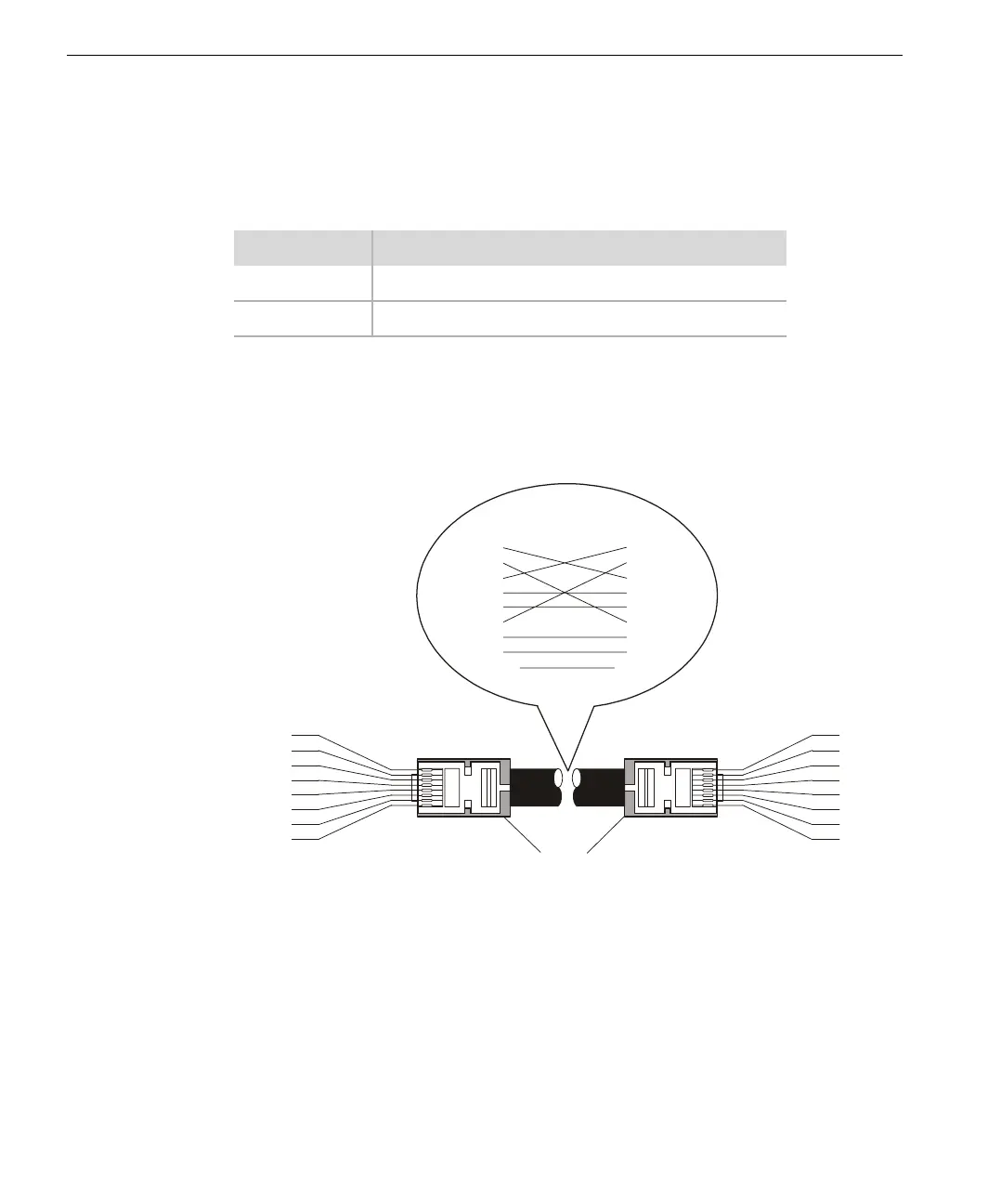

Cross-over cables are used to link the Ethernet card on a PC to the 10BaseT
Ethernet connectors on the MP Baseplate.
Model Description
1600044-020 10BaseT cross-over cable, 6 m (20 f)
1600045-020 10BaseT straight-through cable, 6 m (20 ft)
