Triconex Trident - 10 Baset Straight-Through Cable

10BaseT Network Cables for TriStation 213
Appendix A Pin-Outs for Cables and Connectors
10BaseT Straight-Through Cable
Straight-through cables are used to:
• Link the 10BaseT connector on the MP Baseplate to an Ethernet network
hub
• Link the network hub to an Ethernet connector on a PC
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8

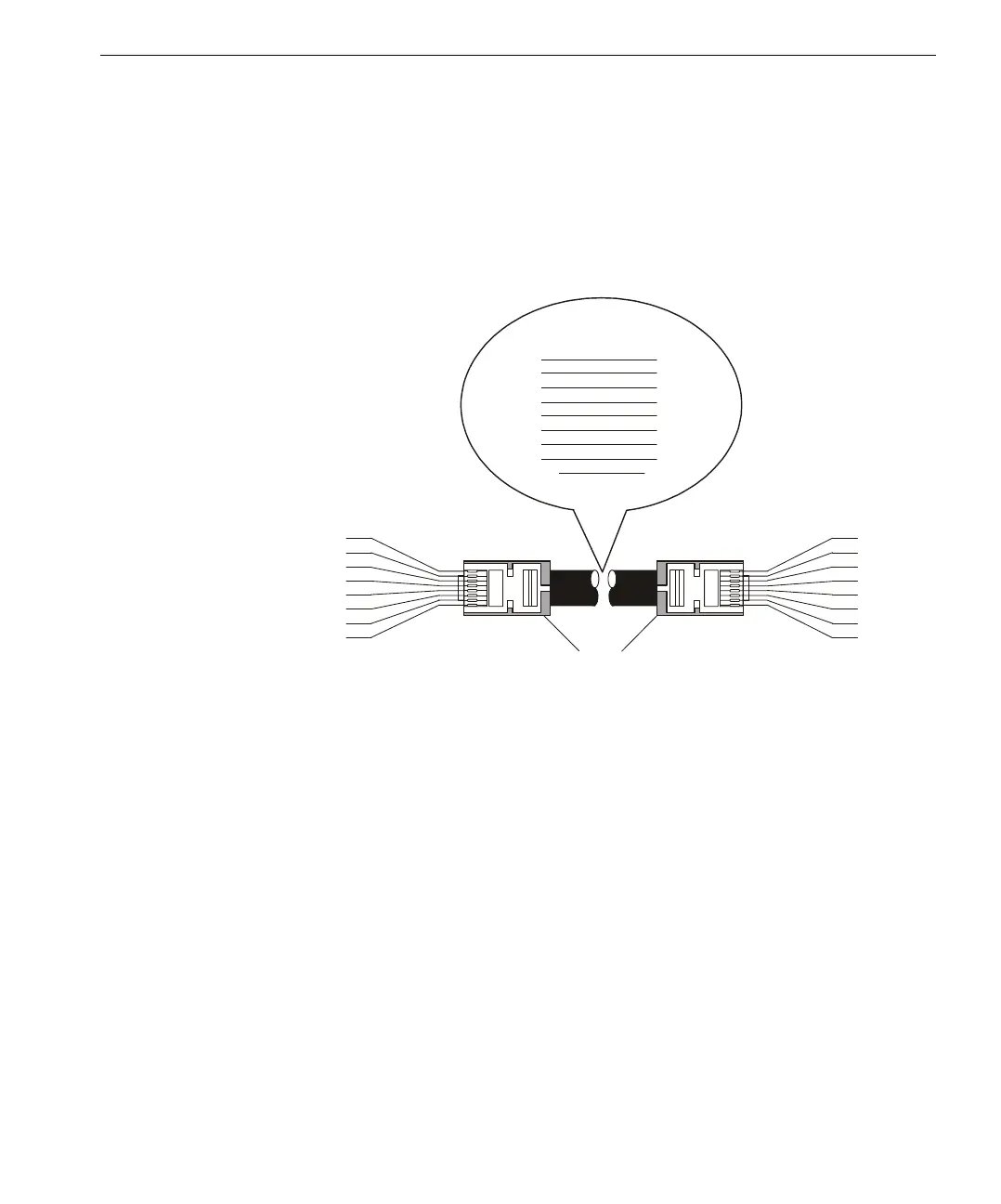

10BaseT
Straight-Through Cable
RJ-45
Connector
RJ-45
Connector
10BaseT
Straight-Through Cable
10BaseT
Straight-Through Cable
Shield
1
2
3
4
5
6
7
8
Shield
1
2
3
4
5
6
7
8
Shield
TD+
TD–
RD+
TD+
TD–
RD+
RD– RD–
