GENERAL INFORMATION
94

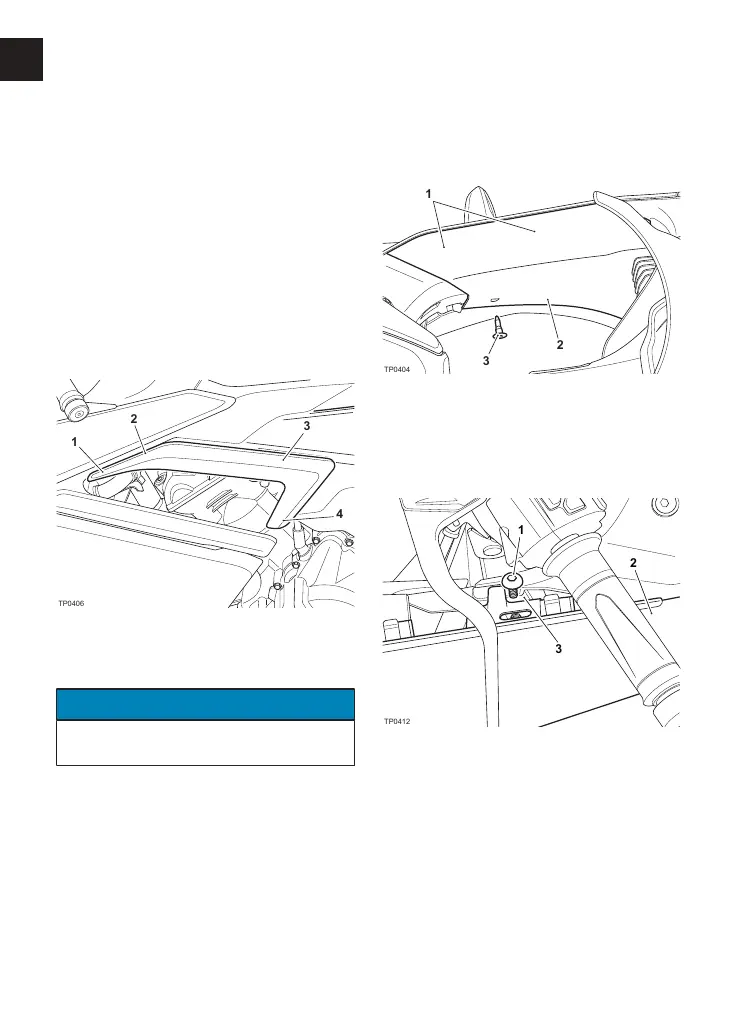

To remove the left hand fairing:
▼ Remove the rider and passenger
seats, see page89.
▼ Disconnect the battery leads,
negative (black) lead first and then
the positive lead, see page173.
▼ Detach the top of the deflector
fairing away from the motorcycle
until it is free from the retaining
grommet (leaving the grommet in
place) and clip.
▼ Slide the deflector fairing downwards
to detach it from its retaining tang.
1. Deflector fairing
2. Retaining grommet location
3. Retaining clip location
4. Retaining tang location
NOTICE
Note the position of the front end of
the cockpit infill panel for installation.
▼ Remove the push release plastic rivet
securing the cockpit infill panel to
the fairing.
▼ Lift the lower edge of the cockpit
infill panel to release it from its two
retaining clips.
▼ Slide the cockpit infill panel
rearwards for removal.
1. Retaining clips location
2. Cockpit infill panel
3. Push release plastic rivet
▼ Remove the fixing securing the top
of the fairing to the fuse box
mounting bracket.
1. Fixing
2. Fairing
3. Fuse box mounting bracket
