GENERAL INFORMATION
95

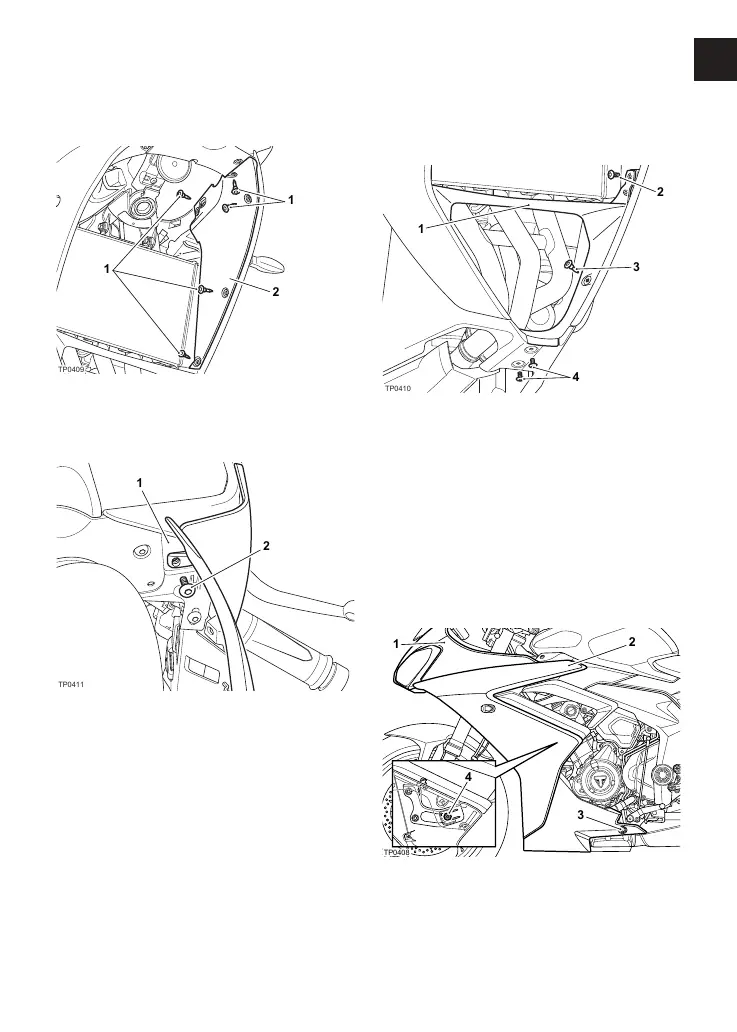

▼ Remove the five push release plastic
rivets and remove the infill panel.
1. Push release plastic rivets
2. Infill panel
▼ Remove the fixing securing the
fairing to the centre infill panel.
1. Centre infill panel
2. Fixing
▼ Remove the push release plastic rivet
securing the lower infill panel to the
fairing.
▼ Remove the upper fixing.
▼ Remove the two lower fixings
securing the fairing lower halves to
each other.
1. Lower infill panel
2. Upper fixing
3. Push release plastic rivet
4. Lower fixings
▼ Remove the fixing from the rear of
the fairing.
▼ Detach the fairing from the cockpit.
▼ Detach the fairing from the fuel tank
infill panel.
▼ Slide the fairing forwards to detach it
from its retaining bracket.
1. Retaining clips location (cockpit)
2. Retaining grommet location (fuel tank infill
panel)
3. Fixing
4. Retaining bracket
