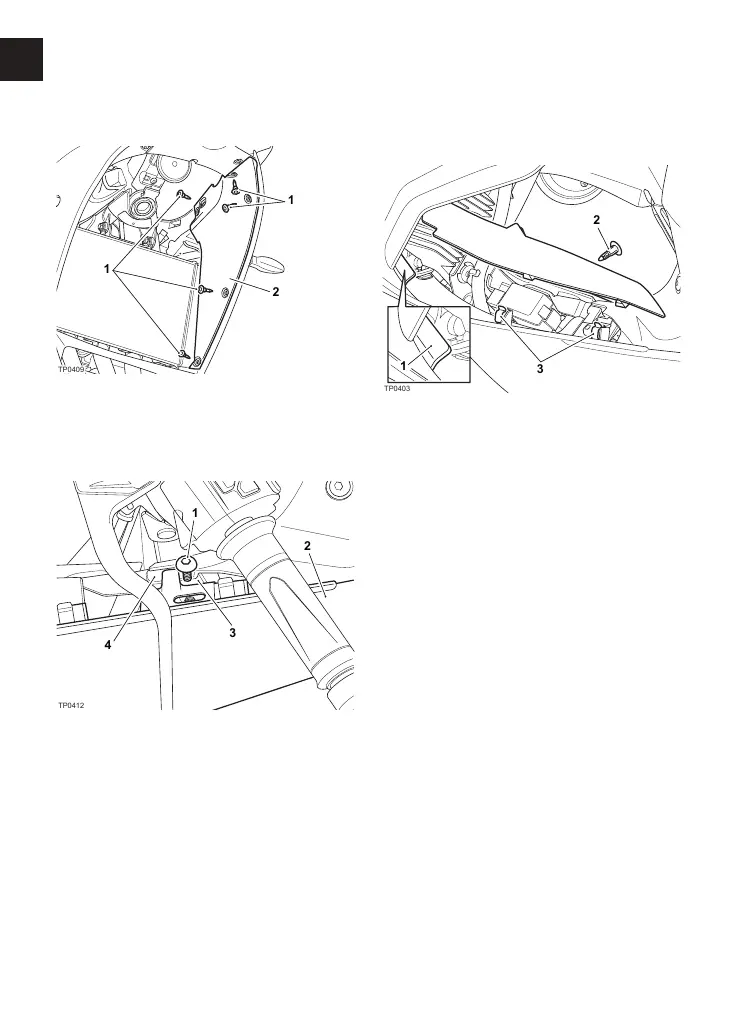

▼ Fit the five push release plastic rivets
securing the infill panel to the fairing.
1. Push release plastic rivets
2. Infill panel
▼ Fit the fixing securing the top of the
fairing to the fuse box mounting
bracket and tighten to 3 Nm.
1. Fixing
2. Fairing
3. Fuse box mounting bracket
4. Fuel tank infill panel
▼ Fit the front end of cockpit infill
panel as noted for removal and slide
the lugs into the two retaining clips.
▼ Fit the push release plastic rivet
securing the cockpit infill panel to
the fairing.
1. Cockpit infill panel locating feature
2. Push release plastic rivet
3. Retaining clips
