UAV-1004234-001, AV-30-E Installation Manual 111
Rev H

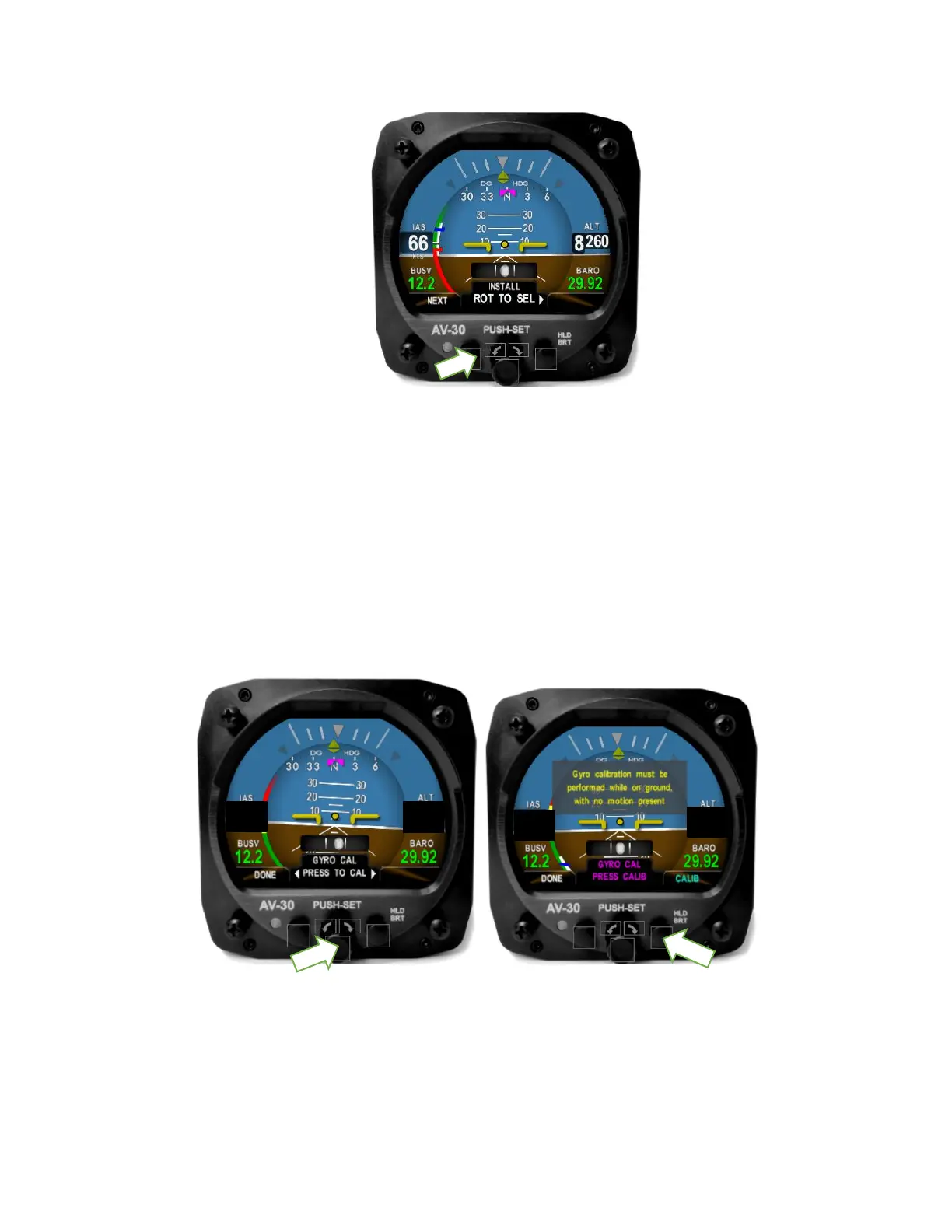

Figure 41 - Install Mode Selection
3. It is critical to ensure the aircraft is completely motionless and on the
ground during the next several steps. The aircraft should be in a
hangar and must not be affected by wind or other sources of aircraft
movement. Do not leave the aircraft during the countdown.
4.
center button to choose calibration. If sufficient warmup time has not
indicated. Otherwise, initiate calibration by pressing the right button.
Figure 42 - Gyro Calibration Selection
5.
percentage.
