UAV-1004234-001, AV-30-E Installation Manual 47
Rev H

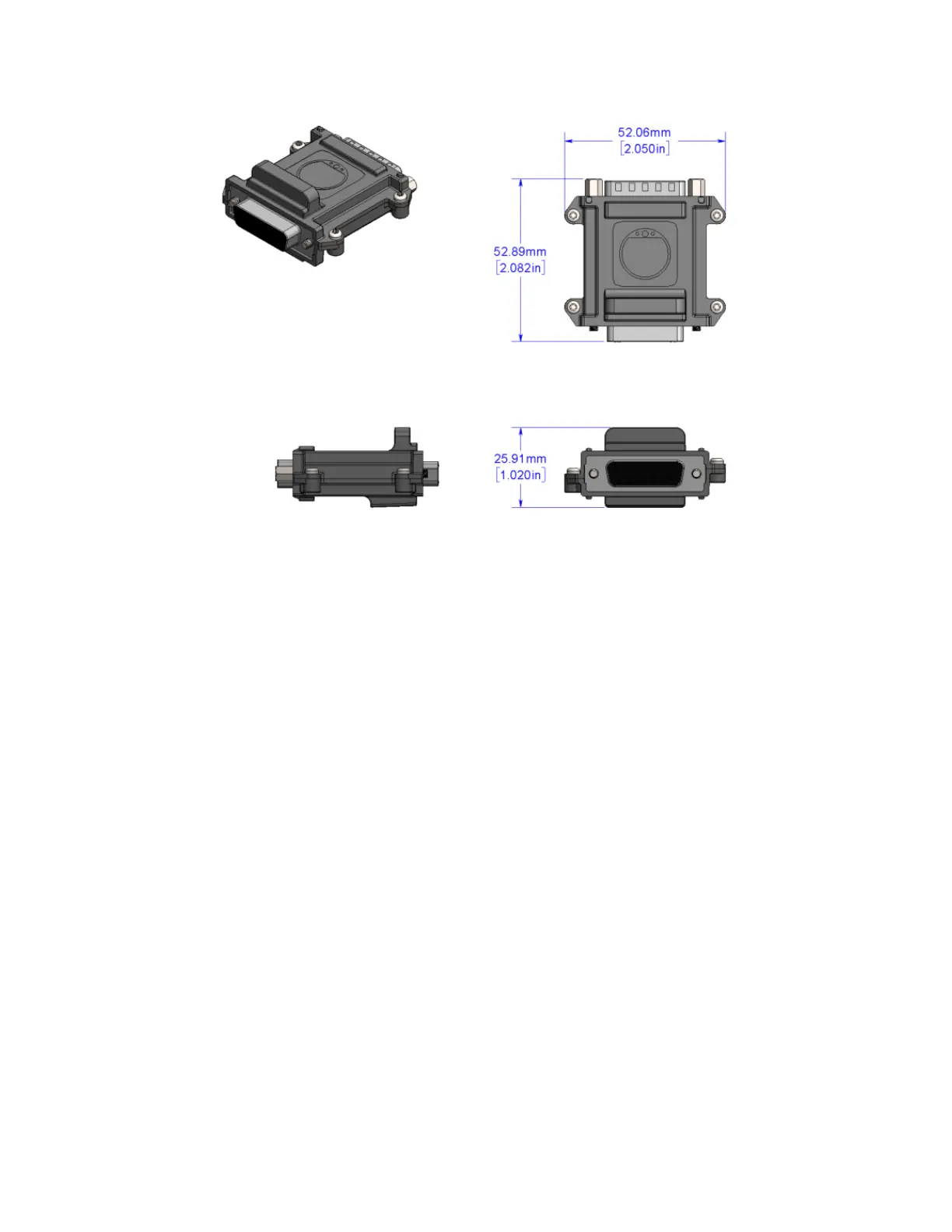

Figure 16 – AV-Link Mechanical Drawing
11.1.4 AV-Link Software
The software contained in the AV-Link device is identified by electronic
marking. Software version information can be accessed via an
embedded web page.
11.1.5 AV-Link Installation Materials and Tools
AV-Link installation requires access to these tools:
• Flat Screwdriver
•
11.1.6 Additional Required Equipment
AV-Link is designed to interface with an existing AV-30 display. To take
advantage of AV-Link the following equipment is required:
• AV-30 3-1/8
