UAV-1004234-001, AV-30-E Installation Manual 42
Rev H

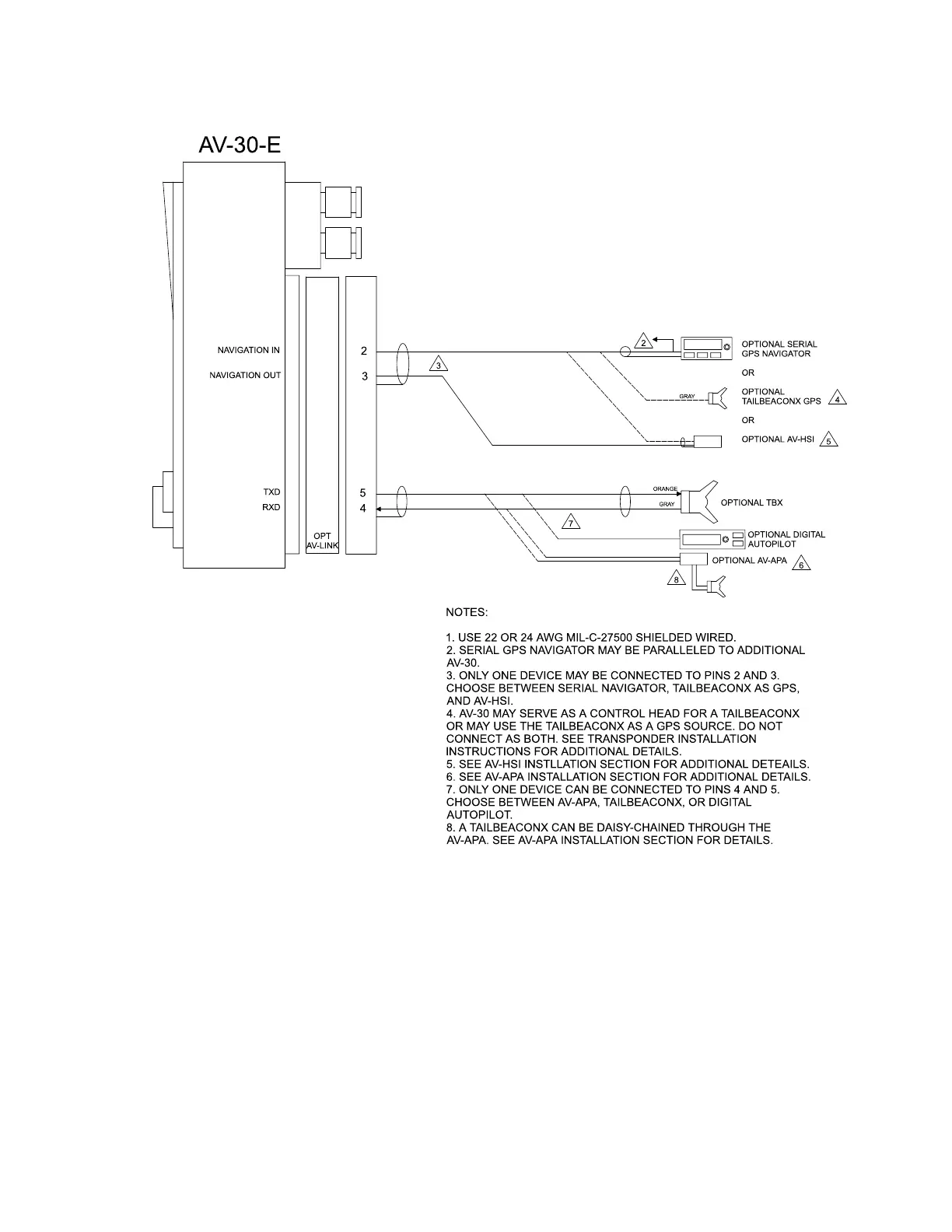

Figure 12 - Wiring Diagram – Optional Connections 2 of 2
10.8 Bonding Requirements
The following figure shows the grounding requirements for the electrical
connections. The two D-Sub screws are to be utilized for shield and
ground strap connections.
