UAV-1004234-001, AV-30-E Installation Manual 22

Rev H

9 Functionality and Required Interfaces

9.1 Aircraft Systems Connections

All aircraft systems connections are provided on the single 15-Pin D-sub

connector and two quick-connect pneumatic fittings. Various interfaces

are optional as indicated in the following diagrams. Do not plug the pitot

and static lines.

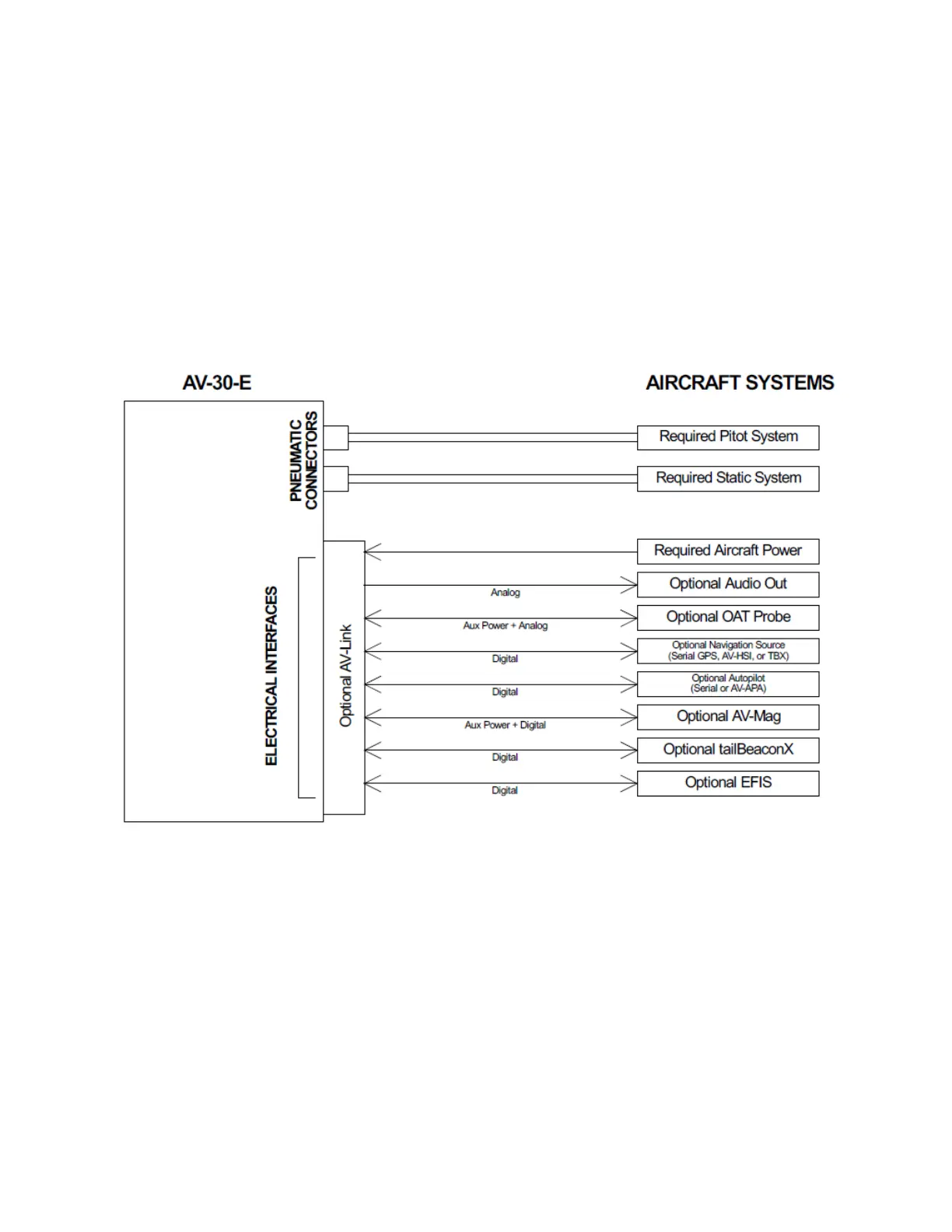

Figure 3 – AV-30 Aircraft Systems Interfaces – AI Mode
