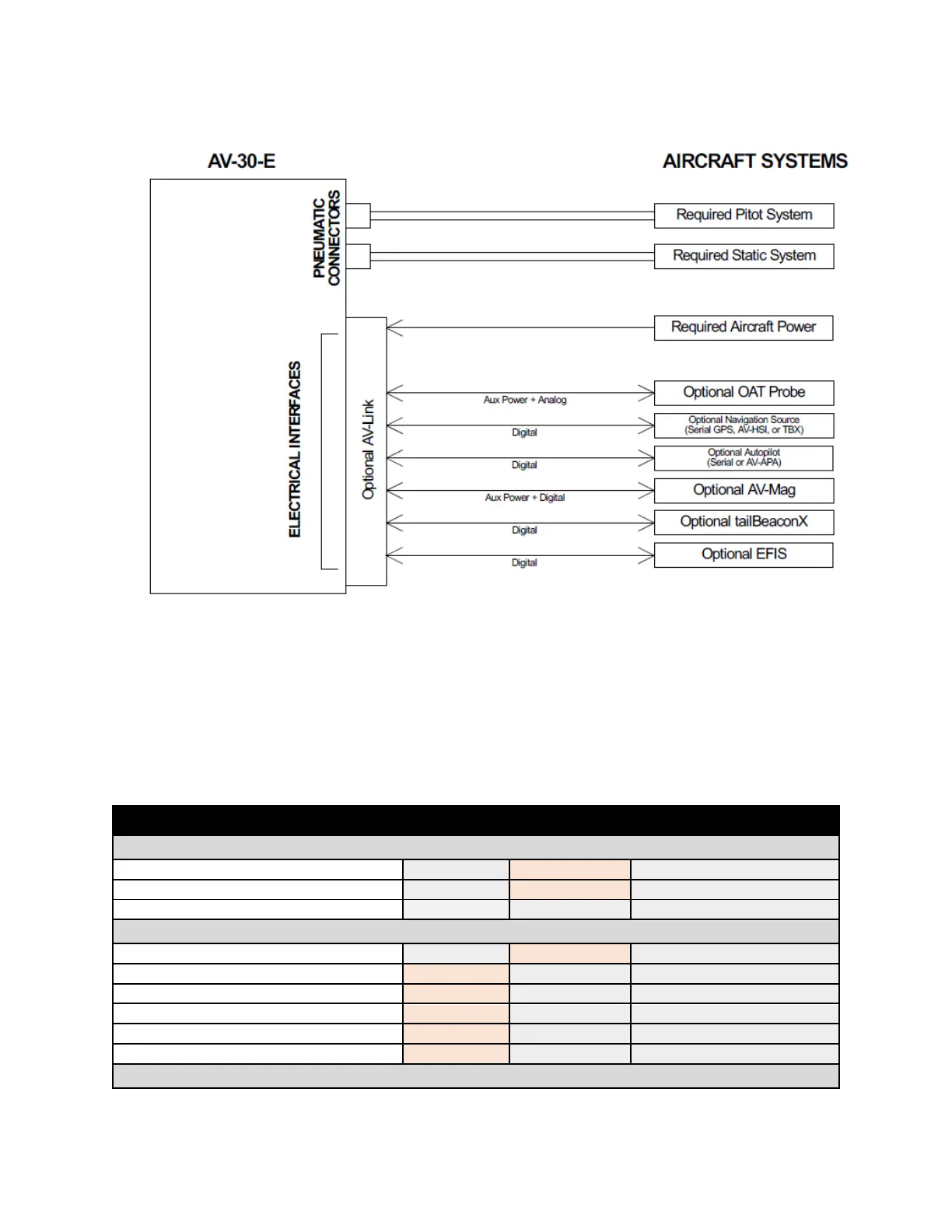

Figure 4 - AV-30 Aircraft Systems Interfaces – DG Mode
9.2 Feature Matrix
The following matrix shows primary and supplemental data and any
required external interface.
Table 9-1 - Feature Matrix
Feature
AI Mode
DG Mode
Required Interface
Primary Attitude and Slip
Primary Attitude
✓

Pitot / Static
Primary Slip
✓

Pitot / Static
Reversionary Attitude / Slip
✓
✓
Pitot / Static
Primary Direction of Flight Indication
Direction Tape (DG / GPS)
✓

Pitot & static / GPS Navigator
Direction Rose (DG)

✓
Pitot / Static
Direction Arc (DG)

✓
Pitot / Static
Direction Arc (GPS)

✓
GPS Navigator
Direction HSI (DG)

✓
Pitot / Static
Direction HSI (GPS)

✓
GPS Navigator
Supplemental Data Overlays – Pilot Configurable (Textual or Graphical)
