12 Setup & Configuration
12.1 Startup and Common Controls

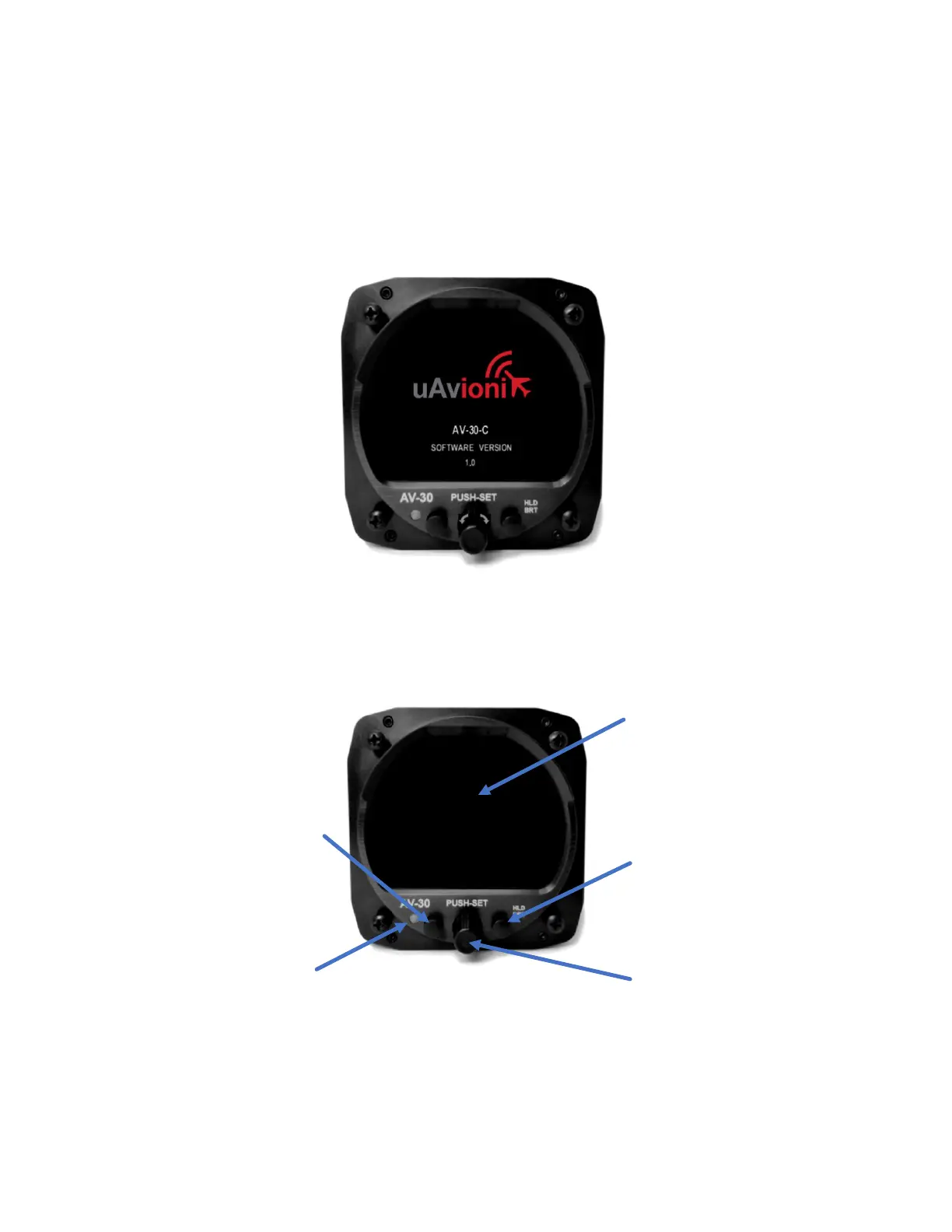

When powered on, the initial splash screen presents the company logo,
unit model number, and the currently installed software version.
Figure 33 – Splash Screen
Operation in both AI and DG modes share common user interface
controls as follows:
Rotary Knob with
Momentary Push
Left Push Button
Right Push Button
(Hold For
Brightness Adjust)
Photo Cell
(Auto Screen
Brightness)
TFT Color Display
Figure 34 – Common User Interface Components
