UAV-1004234-001, AV-30-E Installation Manual 62
Rev H

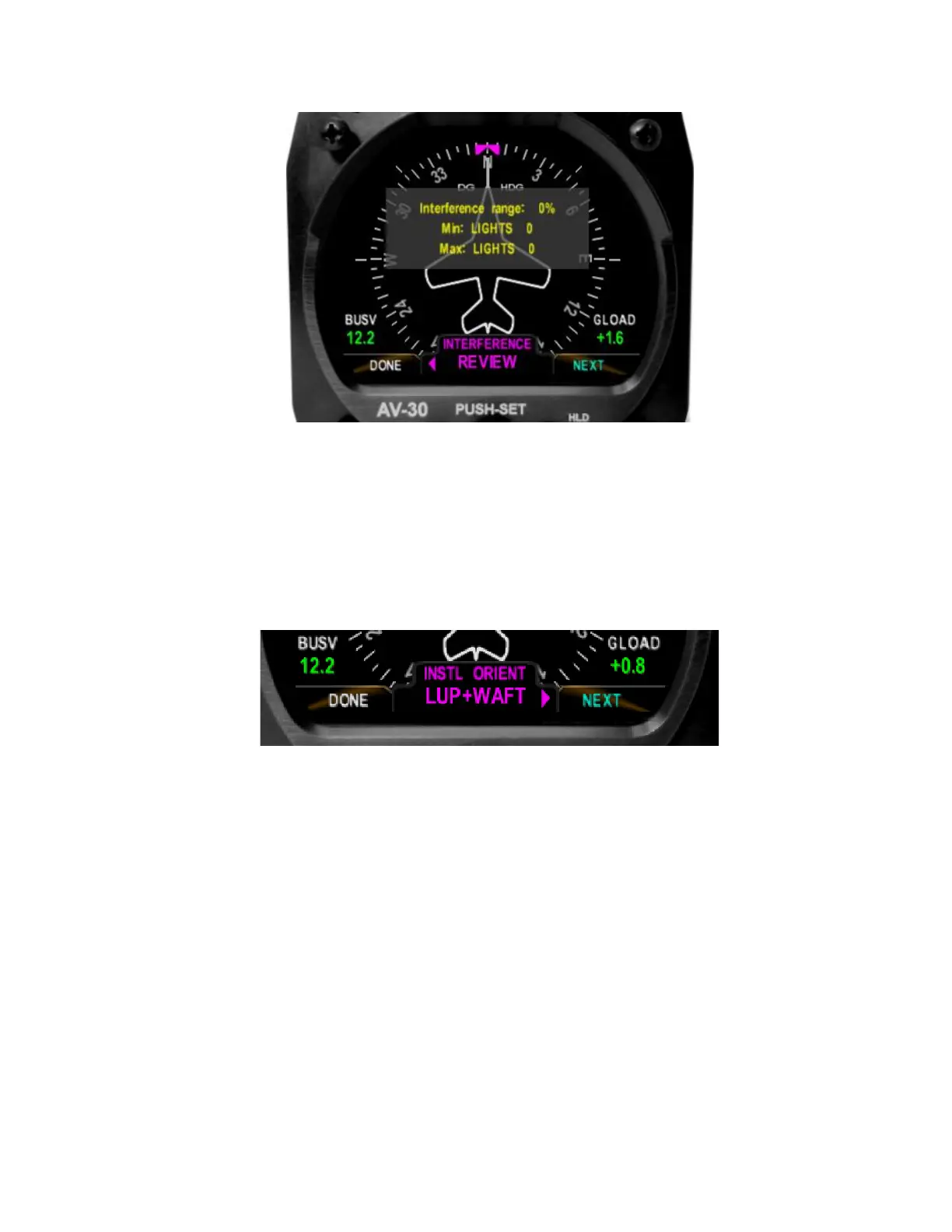

11.3.11 AV-Mag Installation Orientation and Attitude
The AV-Mag can be installed in a number of orientations. The chosen
installation orientation must be entered into the fifth page of the AVMAG
INSTL menu according to Table 11-5. Figure 23 depicts the label and
wire directions referenced in the table.
