UAV-1004234-001, AV-30-E Installation Manual 13
Rev H
6 AV-30 System Information
This document provides instructions on the installation requirements for
the uAvionix AV-30 multi-mode instrument.
6.1 System Description
The uAvionix AV-30 is a fully digital multi-mode instrument that mounts
in the legacy 3-
either an Attitude Indicator (AI), a Directional Gyro (DG) indicator or
Multi-Function Display (MFD). It is fully self-contained with dual-
precision inertial and pressure sensors and allows for a wide variety of
pilot customization. Transponder control is available in AI, DG, and MFD
modes.

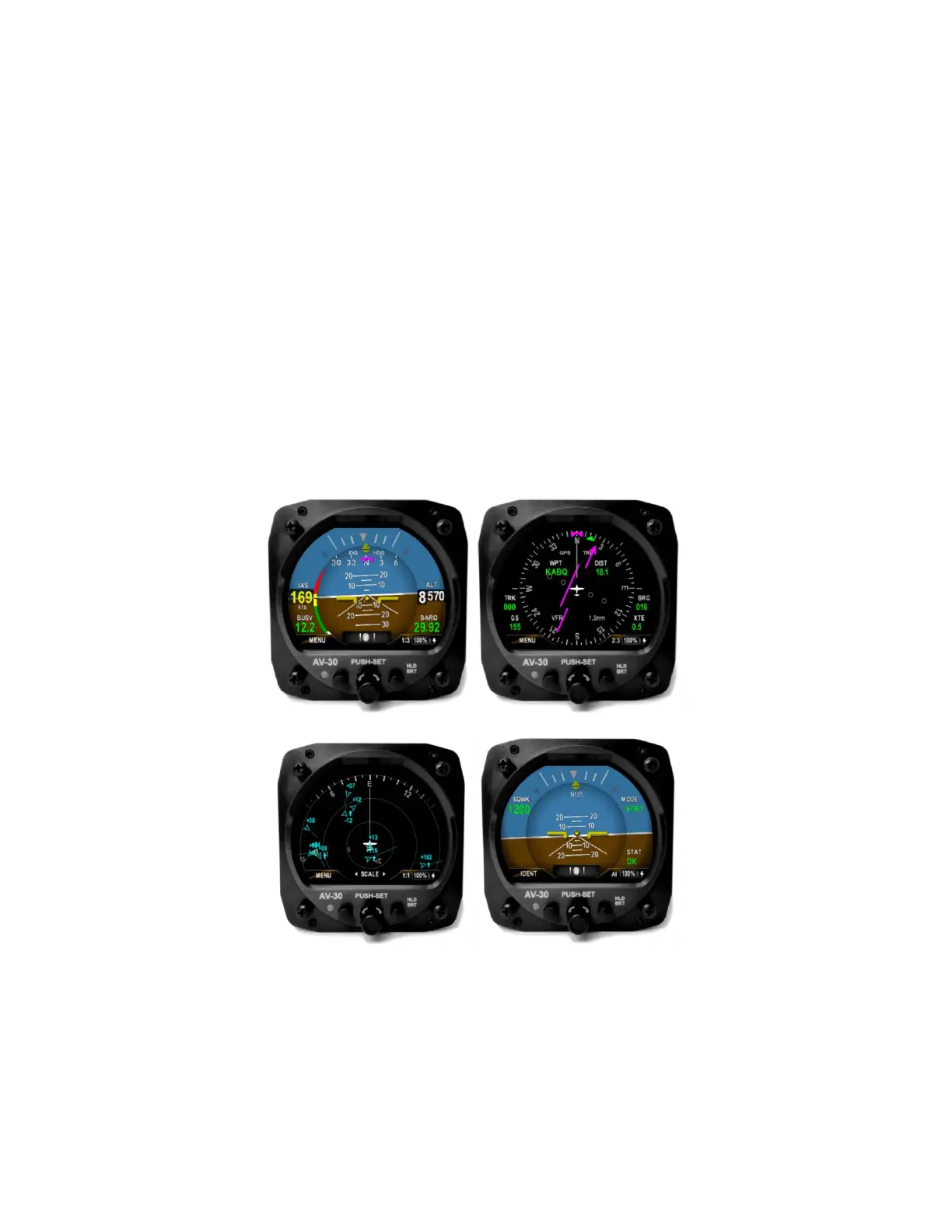

Figure 1 - AV-30 Multi Mode AI/DG/MFD/Transponder – Basic Display
When configured as an AI, primary attitude and slip are always
displayed. The unused portions of the display area can be customized
by the pilot to show a variety of textual and graphical data overlay fields.
To Next Page
